TA7230--the dual channel audio power amplifier integrated circuit

Published:2011/6/8 21:45:00 Author:qqtang | Keyword: audio power amplifier, integrated circuit | From:SeekIC

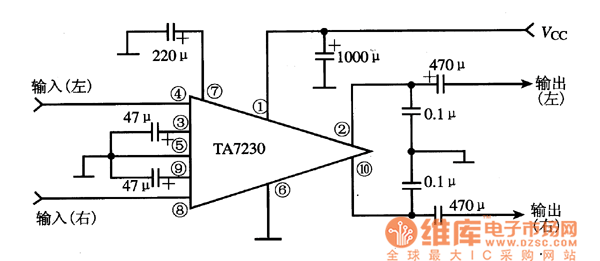

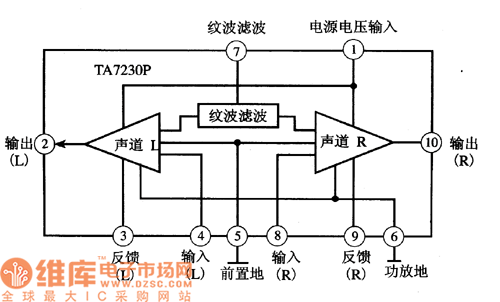

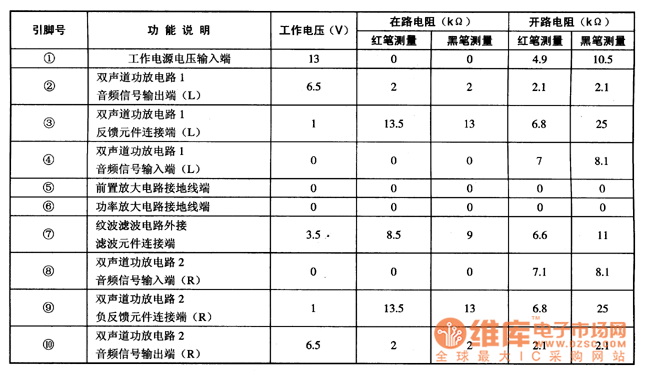

TA7230 is the dual channel audio power amplifier integrated circuit produced by Toshiba, which is widely used in stereo systems, such as car stereos, domestic stereos and so on.1.function features TA7230 contains 2 lines of same-function audio power amplifier circuits, wave filtering circuit, and the silence/mute circuit of power supply protection, whose pin functions are shown in Figure 1. Figure1. The internal circuit of TA7230 2. Pin functions and data TA7230 is in 10-pin in-line package, whose pin functions and data are listed in table1.
