TA8105N monolithic stereo playback integrated circuit

Published:2011/7/5 1:12:00 Author:chopper | Keyword: monolithic, stereo, playback, integrated circuit | From:SeekIC

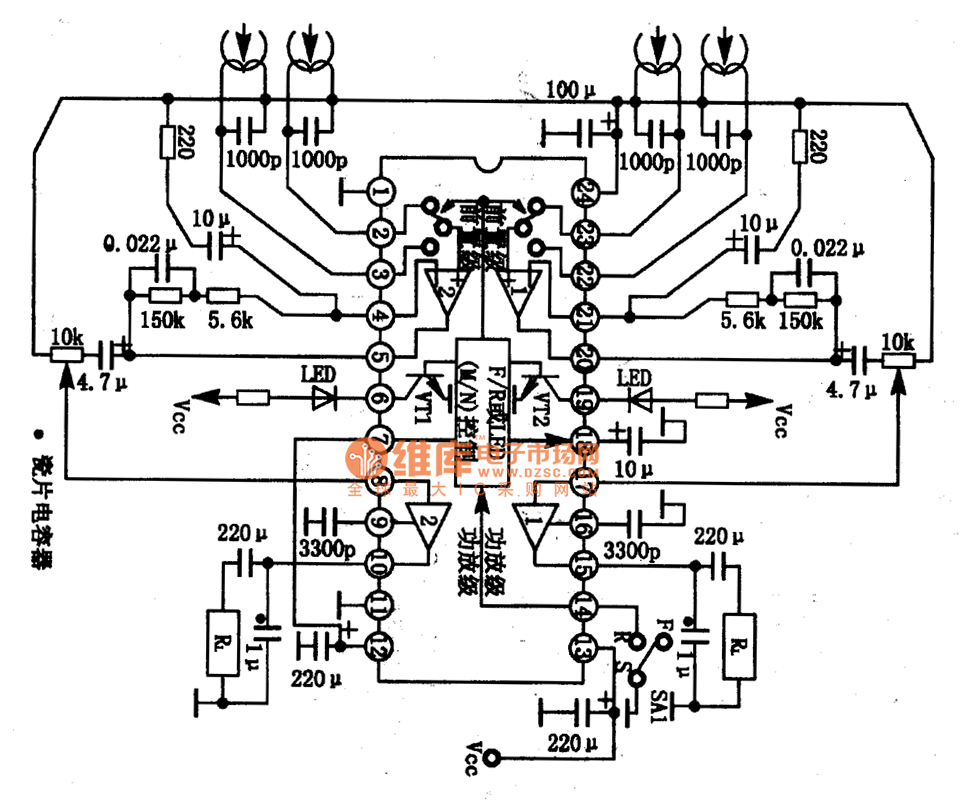

TA8105N is a monolithic playback integrated circuit produced by Company TOSHIBA,and it is applied to mini acoustic system like low-voltage walkman and so on.1.inner circuit and function of pins The inner circuit of TTA8105/N integrated package includes two same preposing equilibrium amplifier circuits,power amplifier circuit and tape track switching circuit. TTA8105/N integrated circuit is of two package structure,TA8105/N adopts dual inline 2 pinned package,TA8105F adopts dual inline 24 pinned flat package.
