TA8109AF--the reception INTREQ integrated circuit

Published:2011/6/9 1:27:00 Author:qqtang | Keyword: reception INTREQ, integrated circuit | From:SeekIC

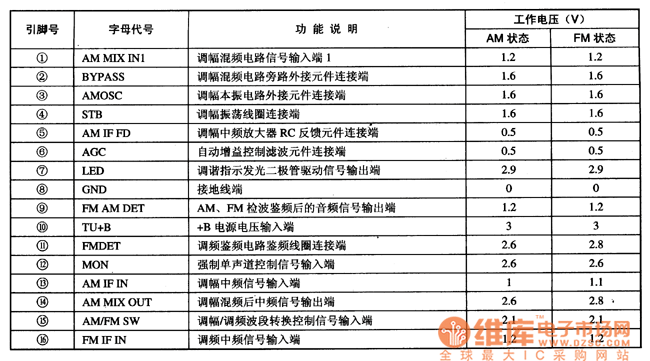

TA8109AF is a FM INTREQ and AM reception integrated circuit, which is widely used in all kinds of low-voltage radios and walkmen.1.function featuresTA8109AF contains FM INTREQ circuit, detection circuit, AM AGC circuit, mixing circuit, self-oscillating circuit, INTREQ circuit, detection circuit and other additional circuits.2.pin functions and dataTA8109AF is in 16-pin dual line package, whose pin functions and data are listed in table 1.Table 1. Pin functions and data of TA8109AF
