TA8127N and TA8127F--the single chip reception integrated circuit

Published:2011/6/9 1:07:00 Author:qqtang | Keyword: single chip, integrated circuit | From:SeekIC

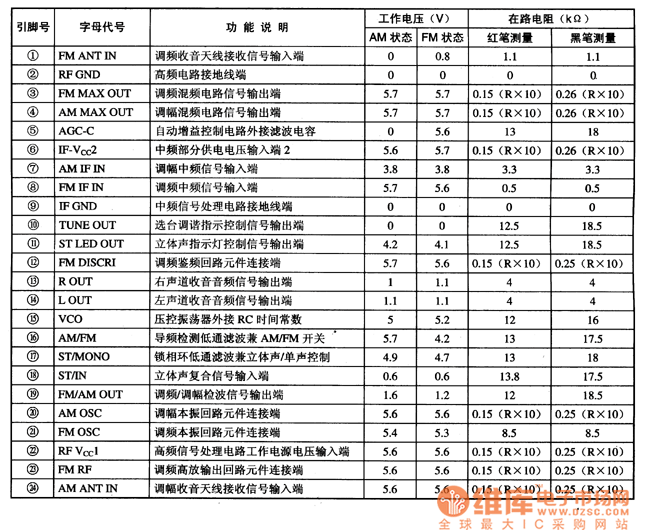

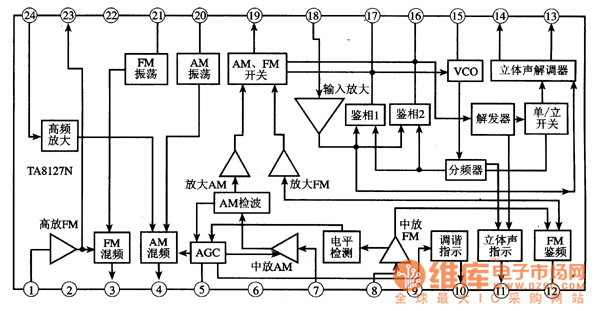

1.function featuresTA8127N/F contains all the signal process circuits that AM/FM filtering reprodution needs, which includes AM mixing, self-oscillating, INTREQ, detection and AGC circuit, and FM4 AGC, FM mixing, local oscillating, modulation and stereo decoing circuit; among the additional circuits, there are modulation display drive, stereo order drive, AM/FM shifting switch, etc. The internal circuit is shown in Figure 1.2.main electric parametersThe working voltage of TA8127N/F ranges from 1.8v to 8v.3.pin functions and dataTA8127N/F is in two kinds of packages.
