TC8835BN--the integrated circuit of the digital audio process

Published:2011/6/7 12:07:00 Author:qqtang | Keyword: integrated circuit, digital audio process | From:SeekIC

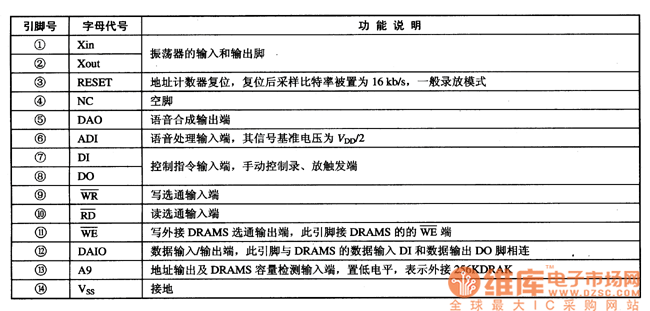

1. Function features TC8835BN mainly consists of the address counter, machine halt address storage, appendix register, dynamic storage connector circuit, clock oscillator circuit, time based generator control circuit, sound digit storage analyse/compound circuit, D/A counter voltage follower, state register, micro-process connector circuit and other additional function circuit, etc. It's internal circuit is shown in Figure 1.Figure 1. The internal circuit of TC8835BN 2.pin functions
