TTL Interface And Monostable Trigger Circuit

Published:2011/5/9 5:09:00 Author:Sue | Keyword: TTL, Interface, Monostable, Trigger | From:SeekIC

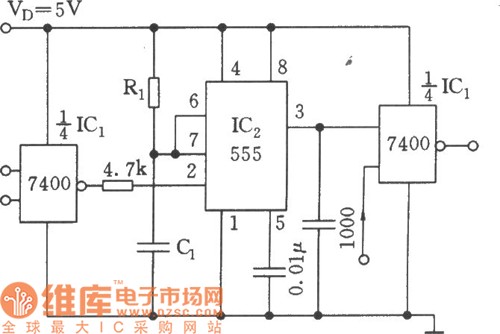

In a TTL Four-2 input and NOT gate circuit, when there is a positive pulse, after inverse triggering monostable trigger circuit composed of 555 and R1,C1, the output pulse can connect with any TTL circuit or CMOS circuit.
