The P83C266BDR integrated circuit

Published:2011/6/9 7:33:00 Author:qqtang | Keyword: integrated circuit | From:SeekIC

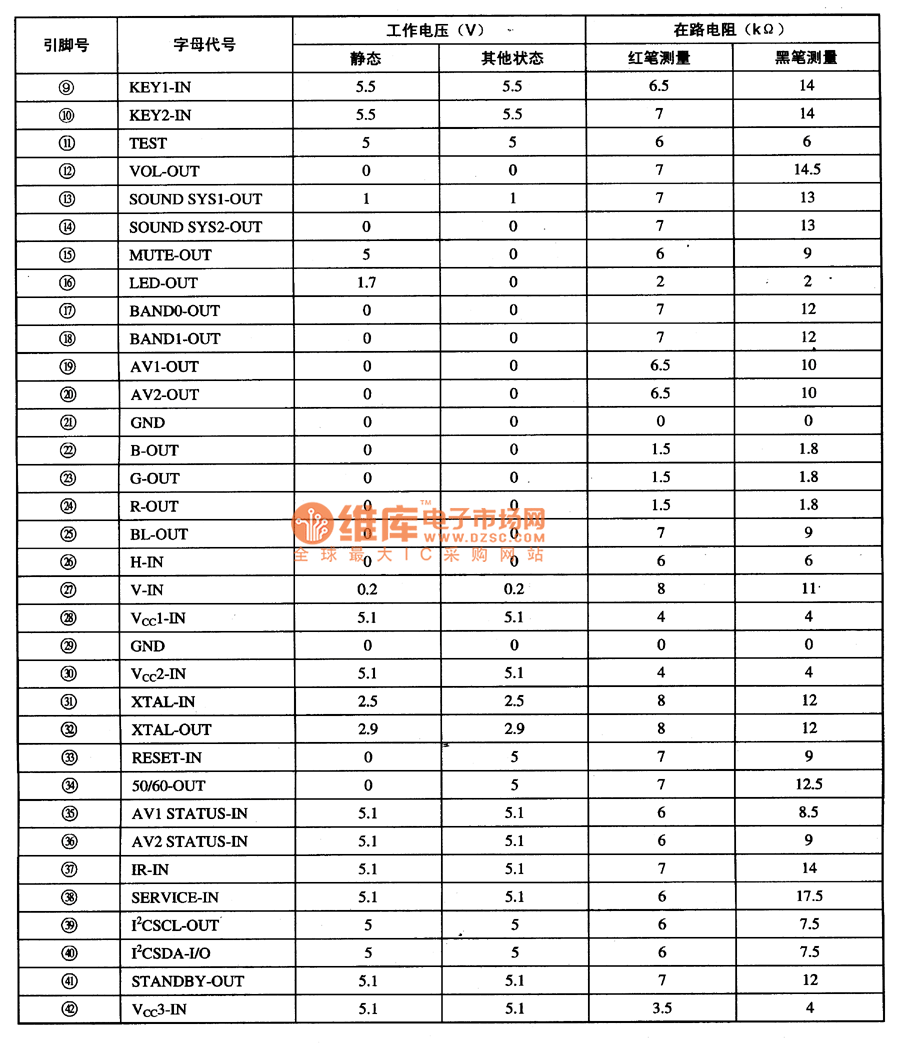

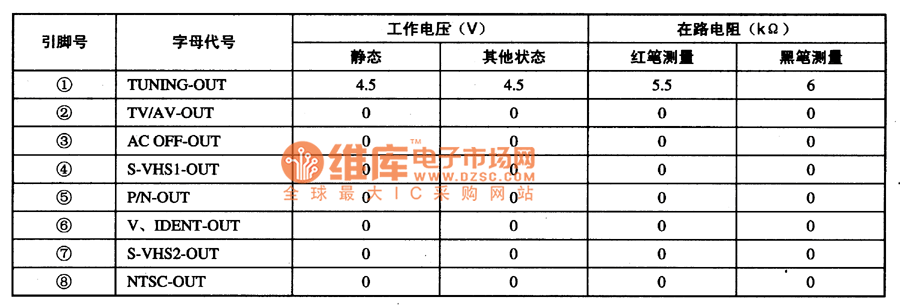

P83C266BDR is a single chip microcomputer integrated circuit produced by Philips, which is used in both local and imported large screen color TV.1. Function featuresP83C266BDR consists of the CPU, clock oscillating circuit, reset control circuit, key order decoding circuit, I2C general control circuit, infrared remote order signal process circuit, screen displayed letter generating and process circuit, standby/starting up control circuit and other control and additional function circuits.2.pin functions and data
