ZENER_NOISE_GENERATOR

Published:2009/7/17 23:05:00 Author:Jessie | From:SeekIC

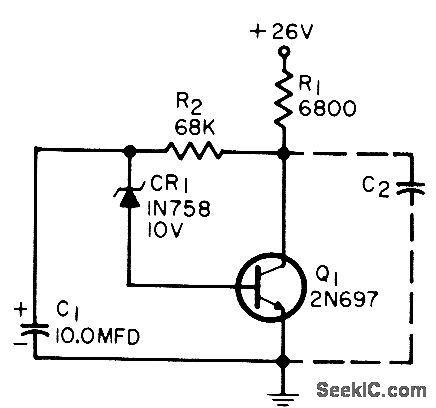

Amplifies noise voltage developed across conducting zener diode. Zener current is fed to base of transistor, which has nominal current gain of 75.-G. Richwell, One-Stage Semiconductor Noise Generator, EEE, 12:7, p 26-28.
