buffer circuit of isolated capacitive load of OPA606

Published:2011/7/7 1:10:00 Author:chopper | Keyword: buffer, isolated, capacitive load | From:SeekIC

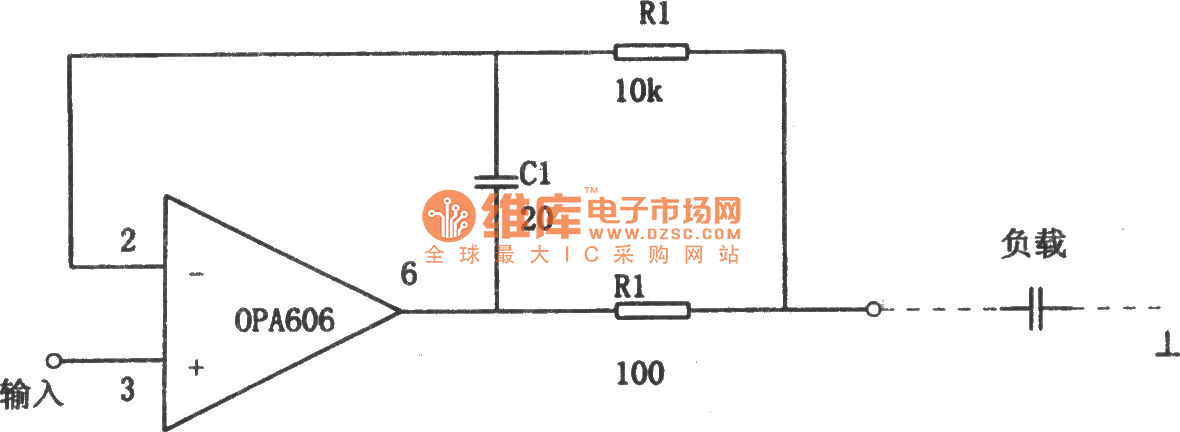

The picture shows the buffer circuit of isolated capacitive load.The general operational amplifier will greatly effect the circuit stability,and its dynamic performance will decline seriously when it is connected to capacitive load.However,the circuit shown in picture is able to drive capacitive loads,because the circuit uses the FET input-based media isolation broadband op-amp OPA606 to form amplifier,and to idealized the load ability of amplifition circuit.
