ALTERNATOR_REGULATOR

Published:2009/6/16 2:52:00 Author:May | From:SeekIC

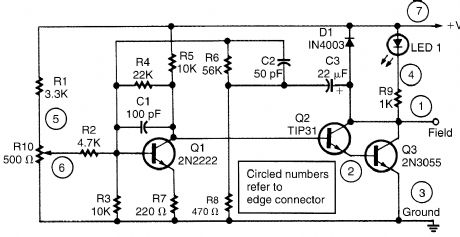

This alternator regulator uses a 3-transistor dc amplifier, and is designed for a pulled up field system, where one side of the alternate field returns to the +12-Vsupply, and the other end is pulled toward ground. The circuit monitors the state of the battery through a resistive divider and causes the voltage to change at the field terminal.
