Published:2009/7/16 3:06:00 Author:Jessie | From:SeekIC

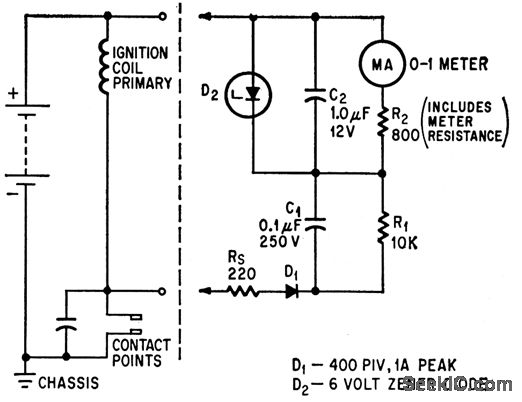

Connects to automobile circuit at battery and at distributor contact points.Zener diode D2 limits maximum charging voltage across C2.-J. A. Irvine, No Moving Parts in Auto Tachometer, Electronics, 39:9, p 77-78.
