An Kai Motor Bus ABS/ASR Circuit

Published:2011/7/18 3:07:00 Author:Joyce | Keyword: An Kai, Motor Bus , ABS/ASR | From:SeekIC

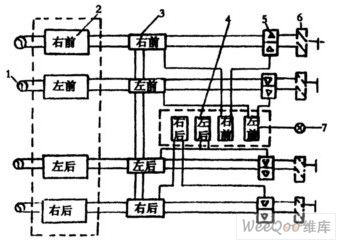

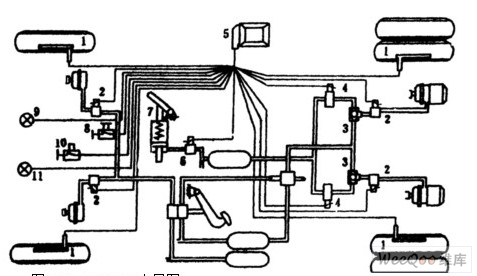

The circuit of ABS is as shown in figure 1, and the layout of ABS/ASR is as shown in figure 2. 1-sensor 2-input processing circuit 3-calculator 4-diagnostic circuit 5-output processing circuit 6-regulator 7-ABS warning light. 1-sensor 2-regulator 3- two-port valve 4-ASR electromagnetic valve 5-control module 6-proportional valve 7-function valve 8、10-function converter 9、ABS warning light 101-ASR light
