BCL to LED connector circuit diagram

Published:2011/4/13 21:36:00 Author:Rebekka | Keyword: BCL to LED connector | From:SeekIC

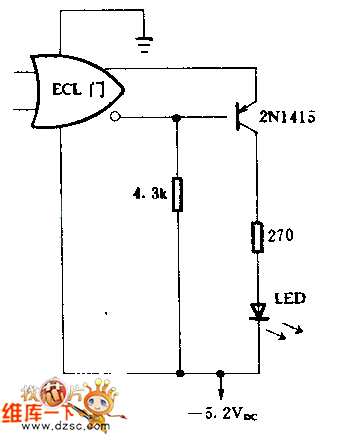

PNP germanium crystal is used for the connector of emitter-coupled logic drive LED. The same connector can be used for drive 7 digical tube or other LED array with common cathode structure. Such as Fairchild FND10 or Mon Santo MAN3. The LED shown in figure can use optical isolators.
