COP881C communication single chip microcomputer integrated circuit diagram

Published:2011/5/9 9:02:00 Author:Nicole | Keyword: communication single chip, microcomputer | From:SeekIC

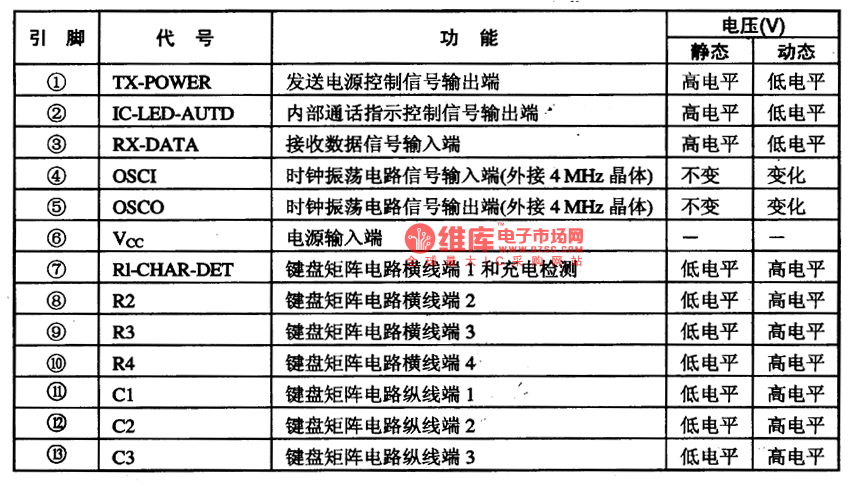

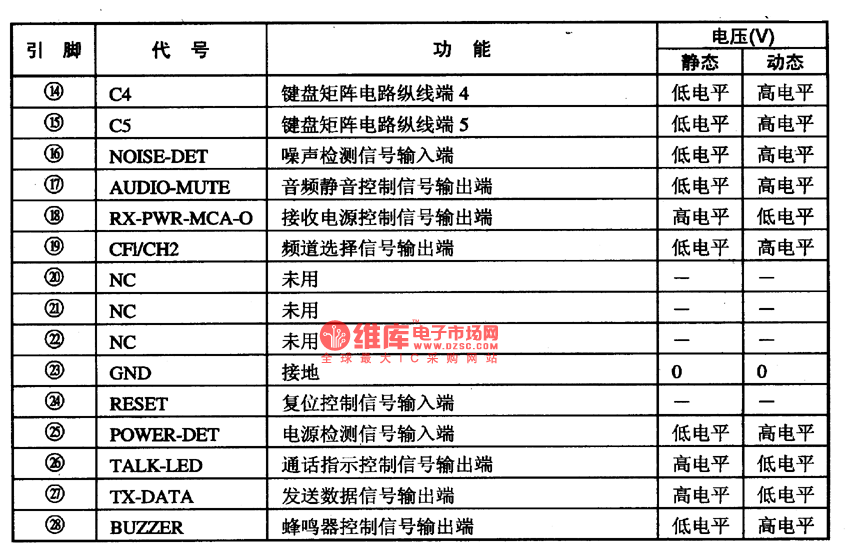

COP881C is a communication special single chip microcomputer integrated circuit, it is widely used in cordless telephone. 1, Function and feature COP881C integrated circuit contains wireless emission and receiving control circuit, key switch compiling code circuit, charging detection circuit. 2, pin function COP881C integrated circuit adopts 28-foot DIP, the integrated circuit pin function and data is shown in chart1. Chart1, microcomputer COP881C pin function and data is shown.
