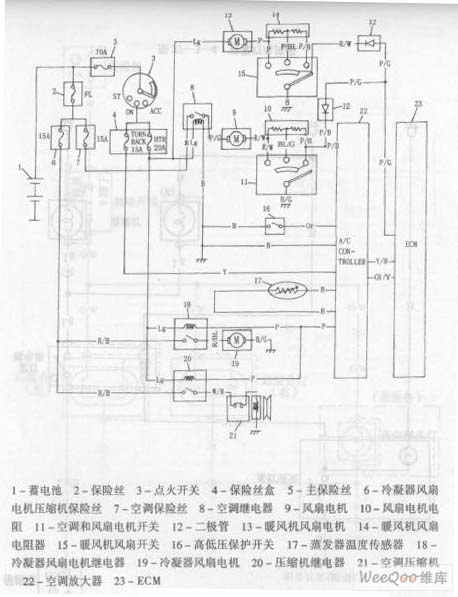

Chang an Star multi-purpose vehicle cooling system circuit diagram

Published:2011/10/20 2:34:00 Author:Rebekka | Keyword: Chang an Star, multi-purpose vehicle , cooling system | From:SeekIC

1. Battery 2. Fuse 3. Ignition switch 4. Fuse box 5. Main fuse 6. Condenser fan motor, compressor fuse 7. Air conditioning fuse 8. Air conditioning relay 9. Fan motor 10. Fan motor resistor 11. Air conditioning and fans the motor switch 12. diode 13. heater fan motor 14. heater fan resistor 15. heater fan switch 16. high and low pressure protection switch 17. evaporator temperature sensor 18. condenser fan motor relay 19. condenser fan motor 20. compressor relay 21. air conditioning compressor 22. Air conditioning amplifier 23.ECM
