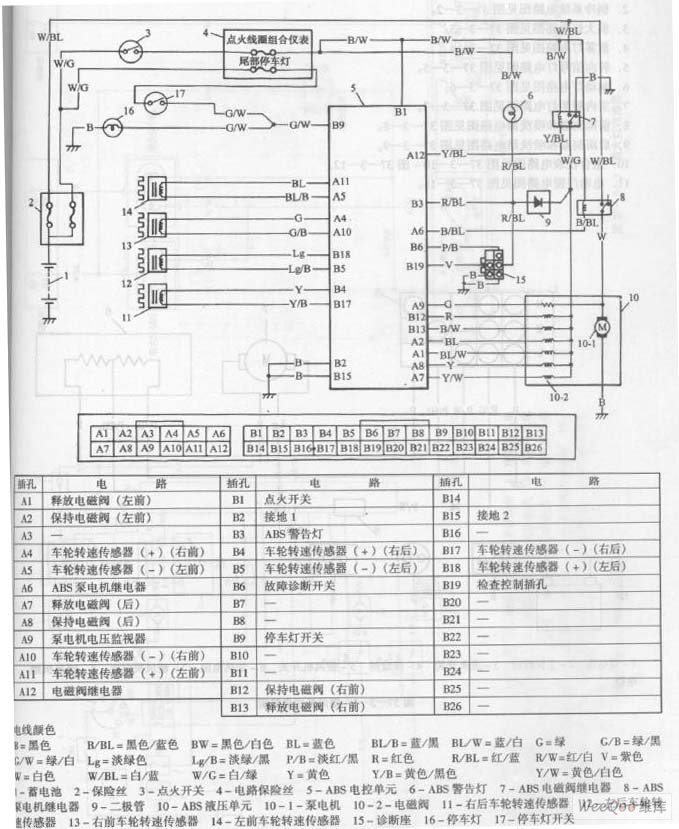

Chang an Star multifunction vehicle ABS circuit diagram

Published:2011/10/20 2:34:00 Author:Rebekka | Keyword: Chang an Star, multifunction vehicle ABS | From:SeekIC

B-black B/BL-black/blue BW-black/white BL-blue BL/B-blue/black BL/W-blue/white G-green G/B-green/black G/W-green/white Lg-light green Lg/B-light green/balck P/B-Pink/black R-red R/BL-red/blue R/W-red/white V-purple W-white W/BL-white/blue W/G-white/green Y-yellow Y/B-yellow/black Y/W-yellow/black Y/W-yellow/black Y/W-yellow/white 1. Battery 2. Fuse 3. Ignition switch 4. 5.ABS electronic control circuit fuse unit 6.ABS warning lights 7.ABS solenoid valve relay 8.ABS pump motor relay 9. Diode 10.ABS hydraulic unit 10-1. Pump motor 10-2. Solenoid valve 11.Right rear wheel speed sensor 12. Left rear wheel speed sensor 13. The right front wheel speed sensor 14. The left front wheel speed sensor 15. Diagnostic Block 16. Stop lamps 17. Stop light switch
