Chang antelope car central locking system circuit diagram

Published:2011/4/28 20:02:00 Author:Rebekka | Keyword: Chang antelope car, central locking system | From:SeekIC

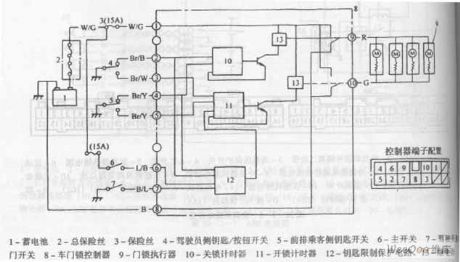

1. Battery 2. The total fuse 3. Fuse 4. The the key / button switch of driver side 5. Front passenger key switch 6. The main switch 8. Car door lock controller 9. Lock actuator 10. Shut the timer 11. unlock timer 12. the key limit protection circuit Chang antelope car central locking system circuit diagram is shown as above.
