Cheetah SUV ABS Circuit

Published:2011/8/1 10:45:00 Author:Robert | Keyword: Cheetah, SUV, ABS | From:SeekIC

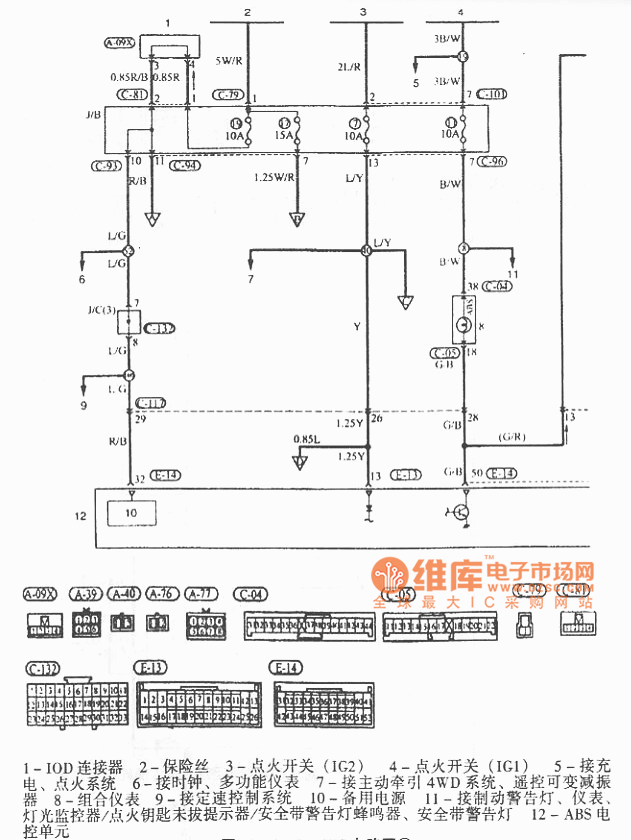

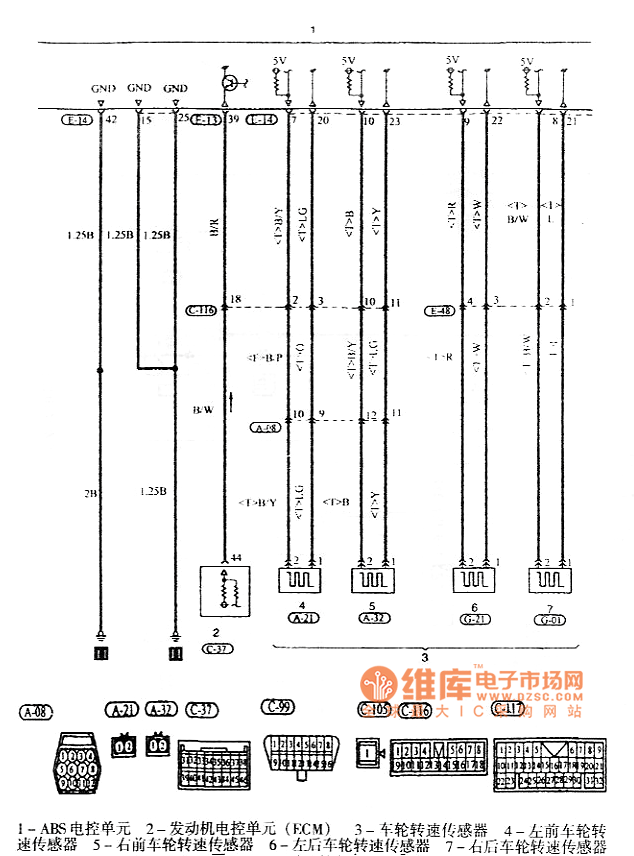

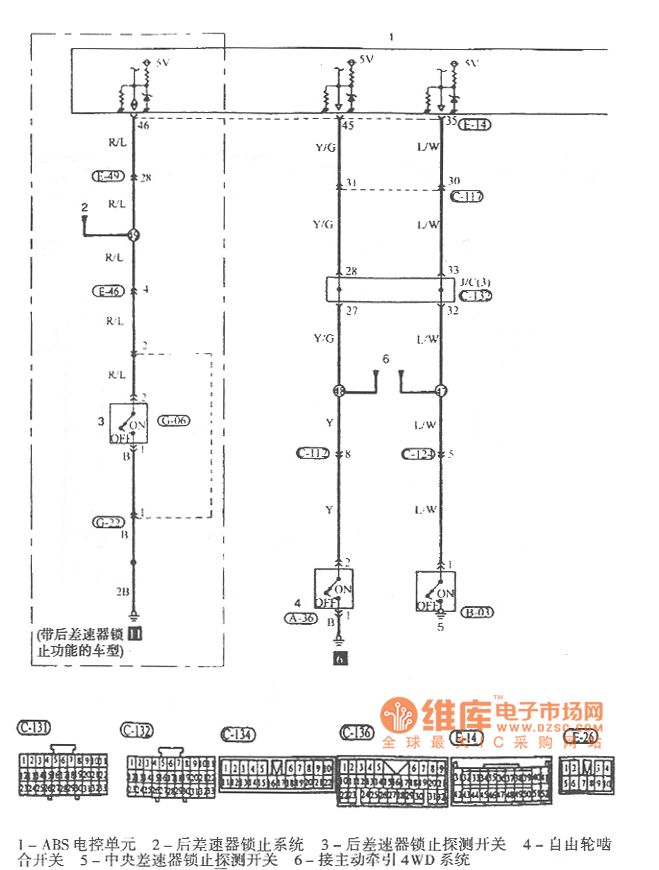

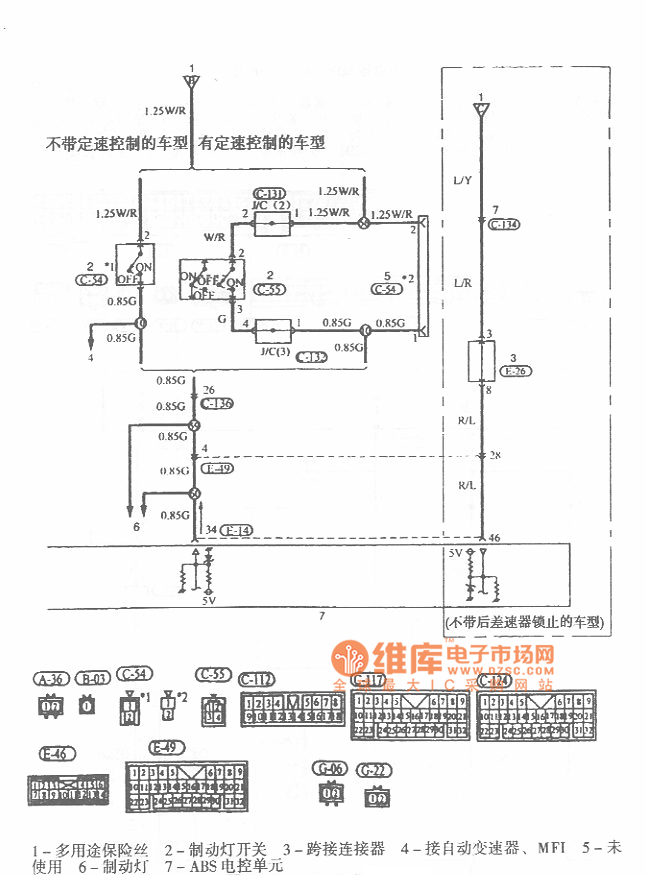

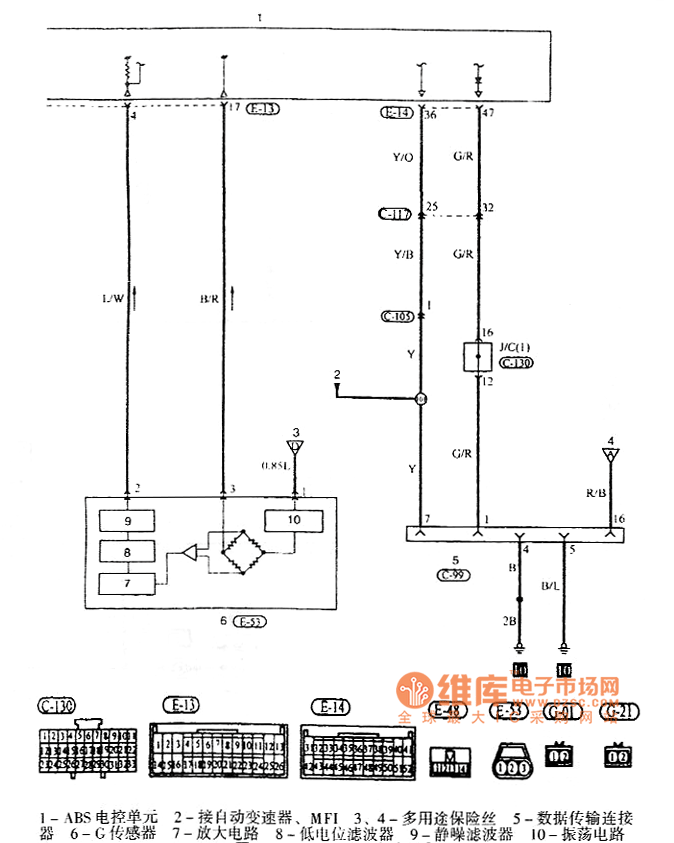

The pictures show the Cheetah SUV ABS circuits. In the first picture the part 1 is IOD connector. The part 2 is fuse. The part 3 is ignition switch (IG2). The part 4 is ignition switch (IG1). The part 5 is connected to charging and ignition system. The part 6 is connected to the clock, multi-function meter. The part 7 is connected to active traction 4WD system and the remote-control variable shock absorber. The part 8 is instrument cluster. The part 9 is connected to the constant speed control system. The part 10 is standby power. The part 11 is connected to brake alarm lamp, meter, light monitor, ignition key not pulling reminder, seat belt alarm lamp. The part 12 is connected to the ABS ECU. And so on.
