Children lost warning device circuit diagram(NE555/TDA7000)

Published:2011/4/18 4:41:00 Author:Rebekka | Keyword: Children lost warning device | From:SeekIC

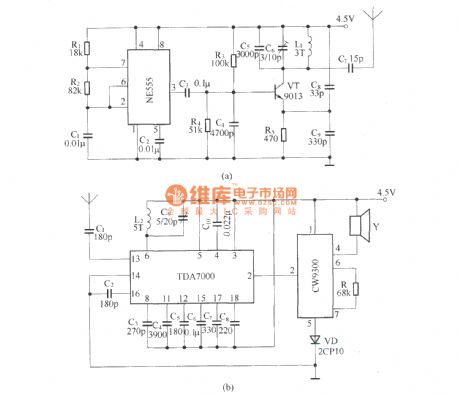

FM transmitter circuit contains low-frequency modulation of oscillator and carrier frequency oscillator transmitter circuit.It is shown in figure (a). The receiving circuit is shown in figure(b).
