Household appliances infrared remote control socket circuit diagram

Published:2011/4/19 4:18:00 Author:Rebekka | Keyword: Household appliances , infrared remote control socket | From:SeekIC

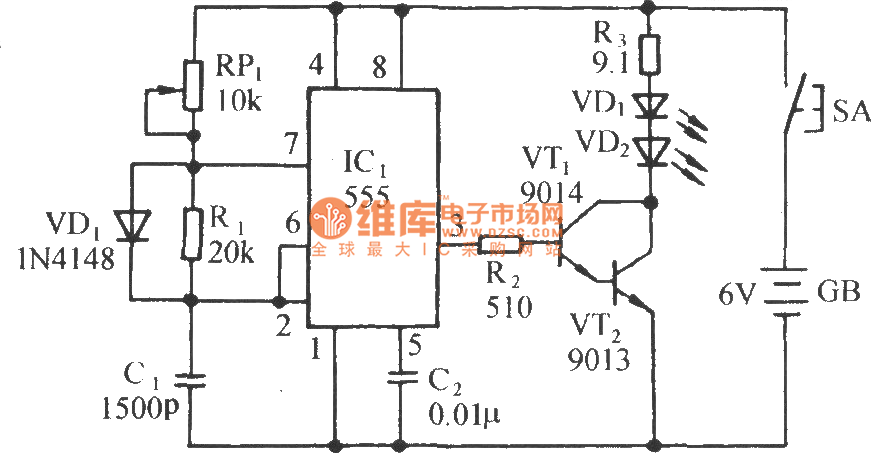

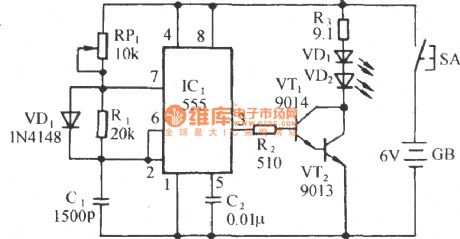

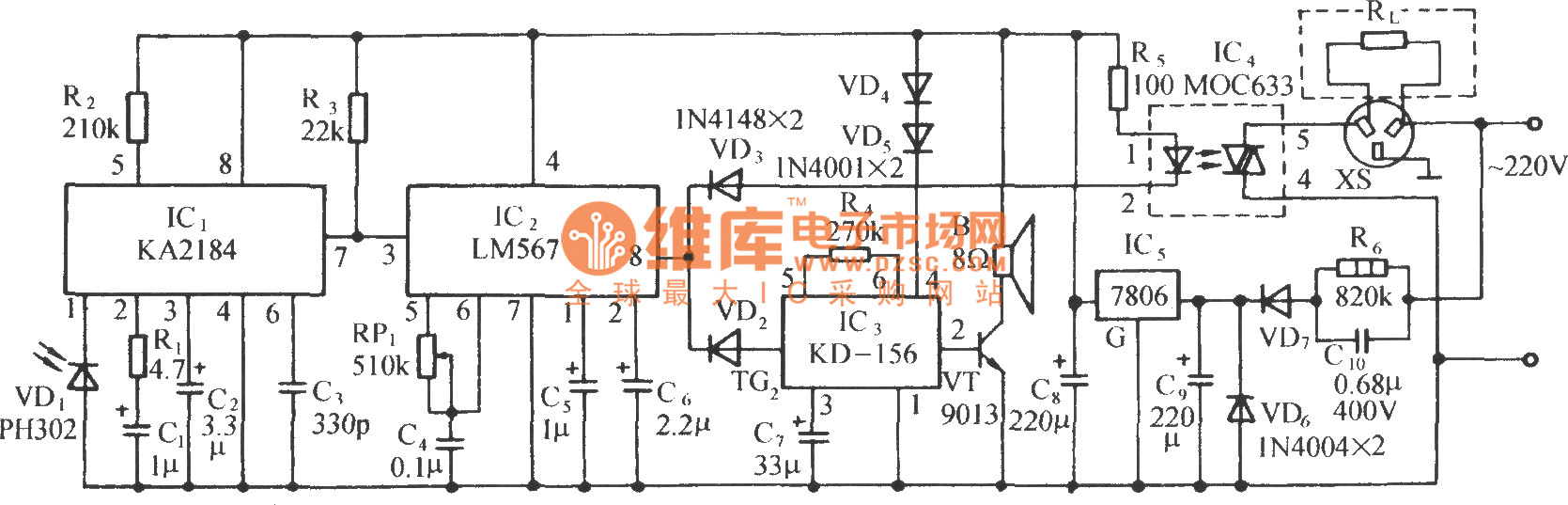

Infrared pulse transmitter circuit. The oscillation frequency is: Infrared receiver demodulation decoding circuit. The circuit is shown above. It includes the infrared pulse transmitter circuit and the infrared receiver demodulation, decoding circuit in two parts. It can be used for remote control of household appliances such as electric fans, table lamps, electric curtains, etc.
