Inductively coupled CUK power conversion circuit

Published:2011/8/31 2:43:00 Author:John | Keyword: Inductively coupled CUK power conversion | From:SeekIC

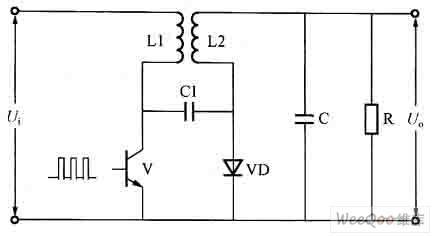

It should be noted that coupled adapter in the figure still uses the symbols of ordinary AC transformer. But in fact there are essential differences between the two: ① DC current can be through the coupled adapter; ②secondary current flow of coupled inductor is on the contrary of that of the AC transformer. As the coupling way only affects the exchange properties, the inductively coupled CUK can maintain the basic characteristics of all transformations, and as well as playing an instant emotional role of energy transfer.
