Infrared remote control music outlet circuit diagram 2 (PH303A)

Published:2011/4/19 3:44:00 Author:Rebekka | Keyword: Infrared remote control music outlet | From:SeekIC

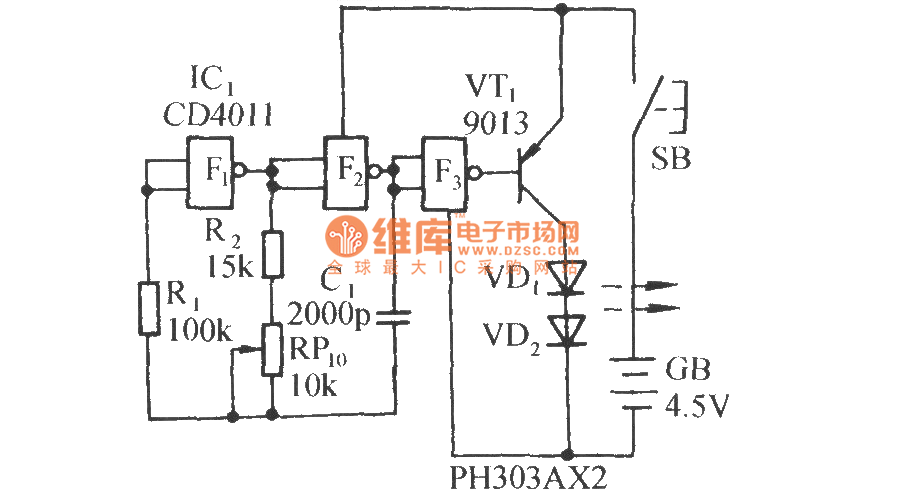

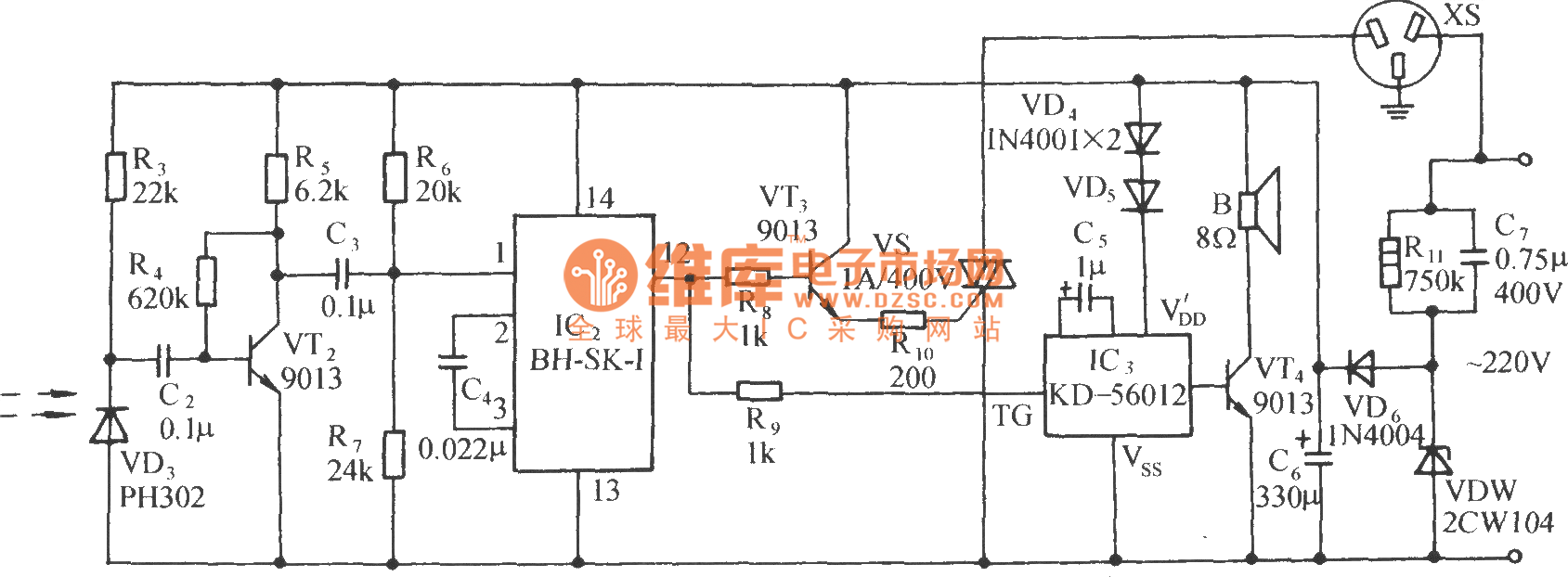

PH303A × 2 infrared pulse transmitter circuit is shown above. Regulating RP1 to make the oscillation frequency is 12kHz. Infrared remote control receiver circuit.
