LED Electronic Clock with Six Functions

Published:2011/8/11 6:41:00 Author:Sue | Keyword: LED Electronic Clock, Six Functions | From:SeekIC

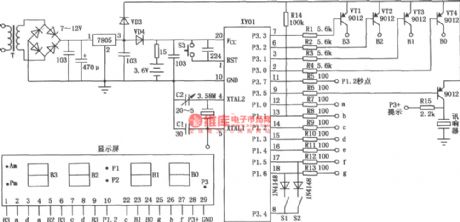

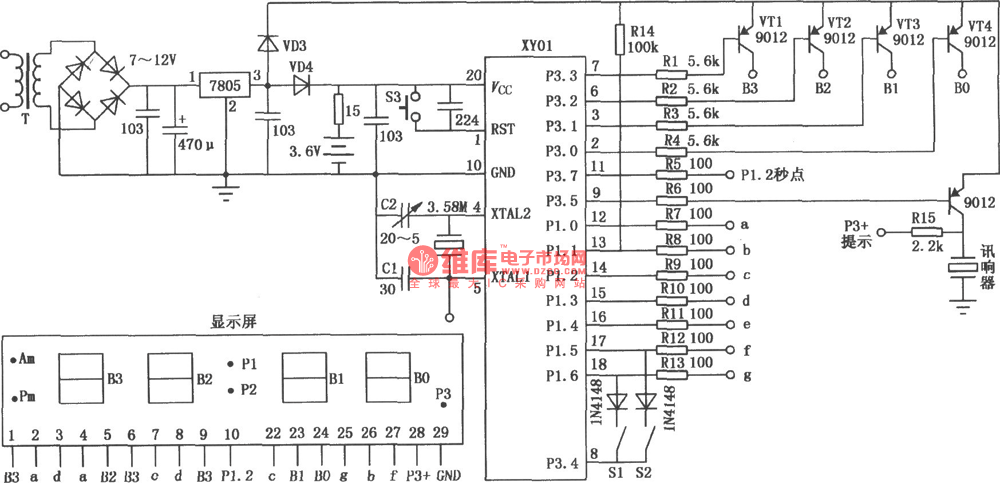

The picture shows the LED electronic clock with 6 functions which is composed of XY01 module. Itcandisplay month, day, hour, minute, second and it has a quarter-bell.
