Numerical Controlled Mono-stable Multivibrating Circuit

Published:2011/4/21 20:01:00 Author:Sue | Keyword: Numerical Controlled, Mono-stable, Multivibrating | From:SeekIC

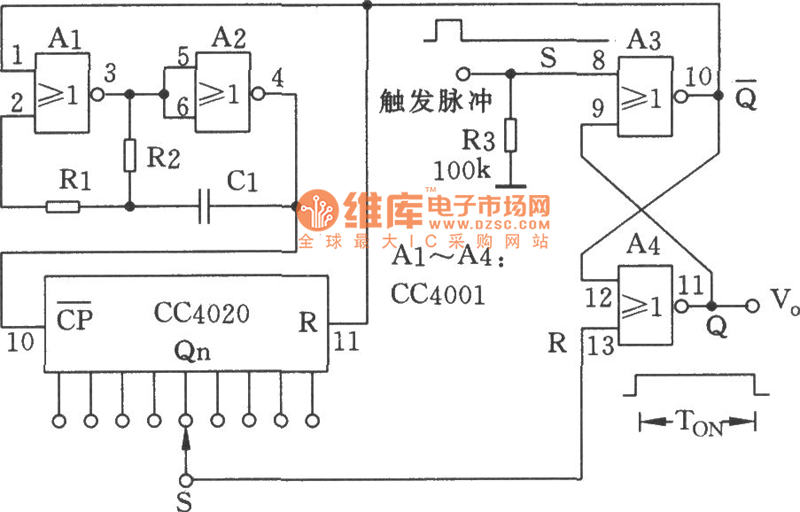

As seen in the figure is the numerical controlled mono-stable multivibrating circuit composed of 4-2 input or NOT gate CC4001 and 14 binary serial counter/ frequency divider CC4020. It is mainly used in time-delay-switches or timers in automatic control equipment.
