Pin functions and data of the integrated circuit

Published:2011/5/9 3:15:00 Author:TaoXi | Keyword: Pin functions, data | From:SeekIC

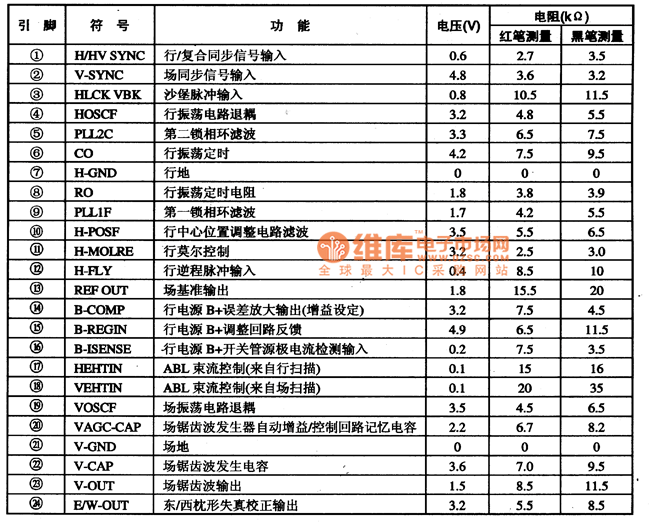

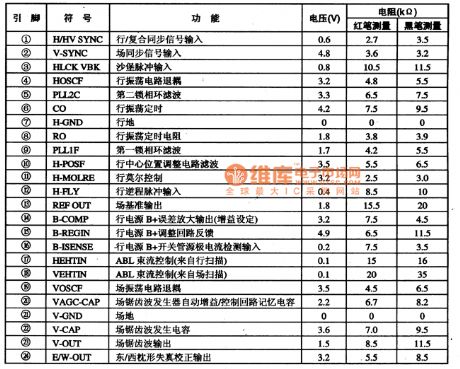

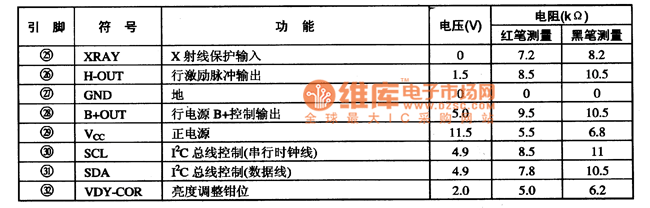

TDA9115--Multi-frequency multi-function processing integrated circuit The TDA9115 multi-frequency multi-function processing integrated circuit is produced by the PHILIPS company that can be used in the new accounting computer monitor such as the Qinghua Tongfang 5E type color monitor. 1. The in-circuit block diagram The TDA9115 has the line & field sync signal processing circuit, the line & field scanning small-signal processing circuit, the XRAY protection circuit, the I(2)C bus interface circuit, the VCO PLL circuit, the beam current control circuit, the line & field reference voltage circuit.etc. The integrated circuit is as shown in figure 37. 2.Pin functions and data The TDA9115 is in the 32-pin double-row package, the pin functions and data is as shown in table 63. Table 63 Pin functions and data of the integrated circuit
