Radio Digital Ondoscope

Published:2011/9/4 7:29:00 Author:Joyce | Keyword: Radio Digital Ondoscope | From:SeekIC

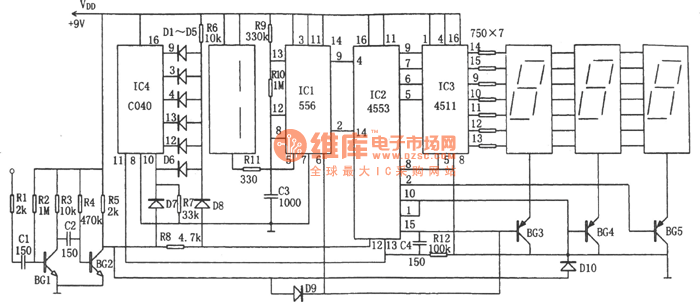

As shown in the circuit is a radio digital ondoscope circuit. It is composed of double time-base circuit 556( IC1), BCD code three bit counter IC2 (MC4553), 12 bit binary serial counter/frequency divider IC4 ( C040), BCD code seven segment lock /decode/driver and 4 digital luminescence tubes etc.
