SHANGHAI GM BUICK(LaCROSSE) saloon car supplementary restraint system circuit diagram(two)

Published:2011/4/18 1:43:00 Author:muriel | Keyword: SHANGHAI GM BUICK(LaCROSSE), saloon car , supplementary restraint system | From:SeekIC

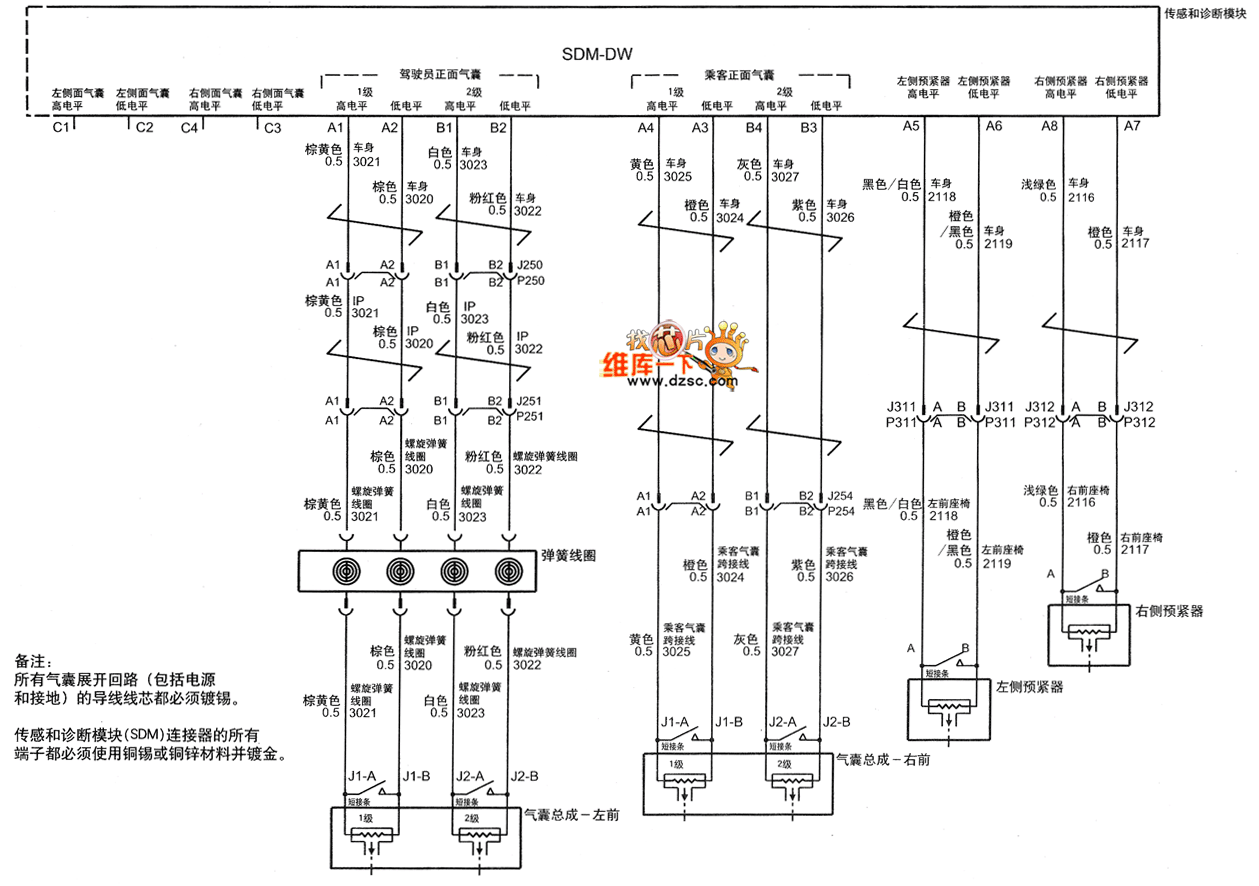

SHANGHAI GM BUICK(LaCROSSE) saloon car supplementary restraint system circuit diagram(two) is as shown Remarks: The core wires of all loop expaned airbags must be tinned. All terminals of Sensing and diagnosis module (SDM) must use Cu-Sn or Copper-zinc and get gilded.
