Santana 2000 Series M1.5.4 Engine Circuit

Published:2011/8/2 2:53:00 Author:Robert | Keyword: Santana, M1.5.4, Engine | From:SeekIC

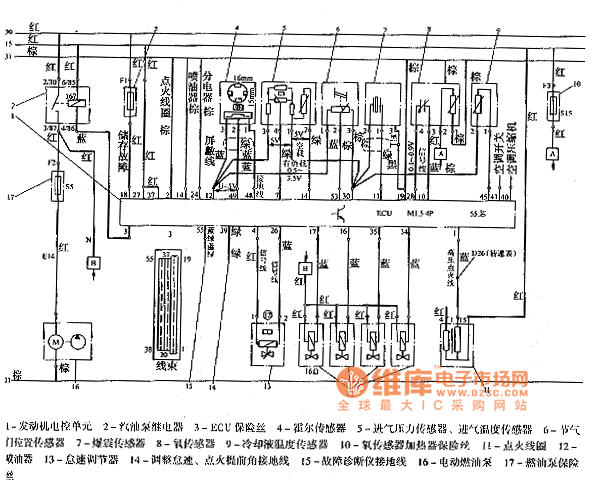

The picture shows the Santana 2000 series M1.5.4 engine circuit. In the picture the part 1 is engine ECU. The part 2 is fuel pump relay. The part 3 is ECU fuse. The part 4 is hall sensor. The part 5 is intake air pressure sensor. The part 6 is throttle position sensor. The part 7 is knock sensor. The part 8 is oxygen sensor. The part 9 is cooling fluid temperature sensor. The part 10 is oxygen sensor heater fuse. The part 11 is ignition coil. The part 12 is injector. The part 13 is idle speed regulator. The part 14 is used to adjust the idle speed, ignition advance angle and then it is connected to the ground. The part 15 is fault diagnosis device and it is connected to ground. The part 16 is electric fuel pump. The part 17 is fuel pump fuse.
