Self-excited Multivibrator Circuit Composed of CC4093

Published:2011/4/21 21:01:00 Author:Sue | Keyword: Self-excited, Multivibrator | From:SeekIC

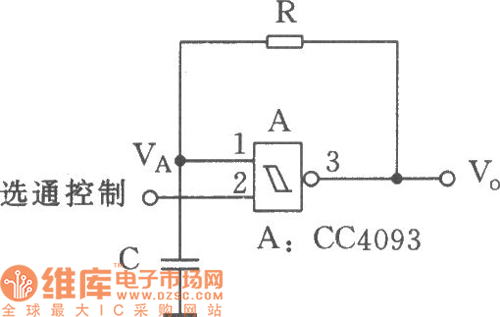

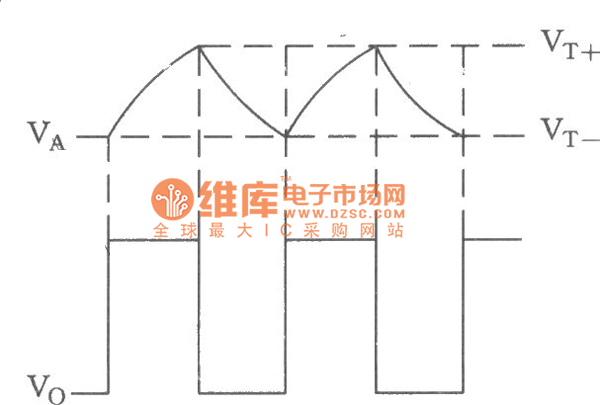

When the multivibrator is composed of Schmitt trigger, only a resistance and a capacitor need to be circumscribed. This circuit is designed for the low frequency oscillator with controllable oscillation and less demand on accuracy. As seen in the figure is the self-excited multivibrator composed of Schmitt trigger CC4093 with 4-2 imput. As to the waveform, see the figure below:
