Shanghai GM Buick LaCROSSE Car 2.4L Engine Circuit (5)

Published:2011/5/9 6:02:00 Author:Robert | Keyword: Shanghai GM, Buick, LaCROSSE, 2.4L Engine | From:SeekIC

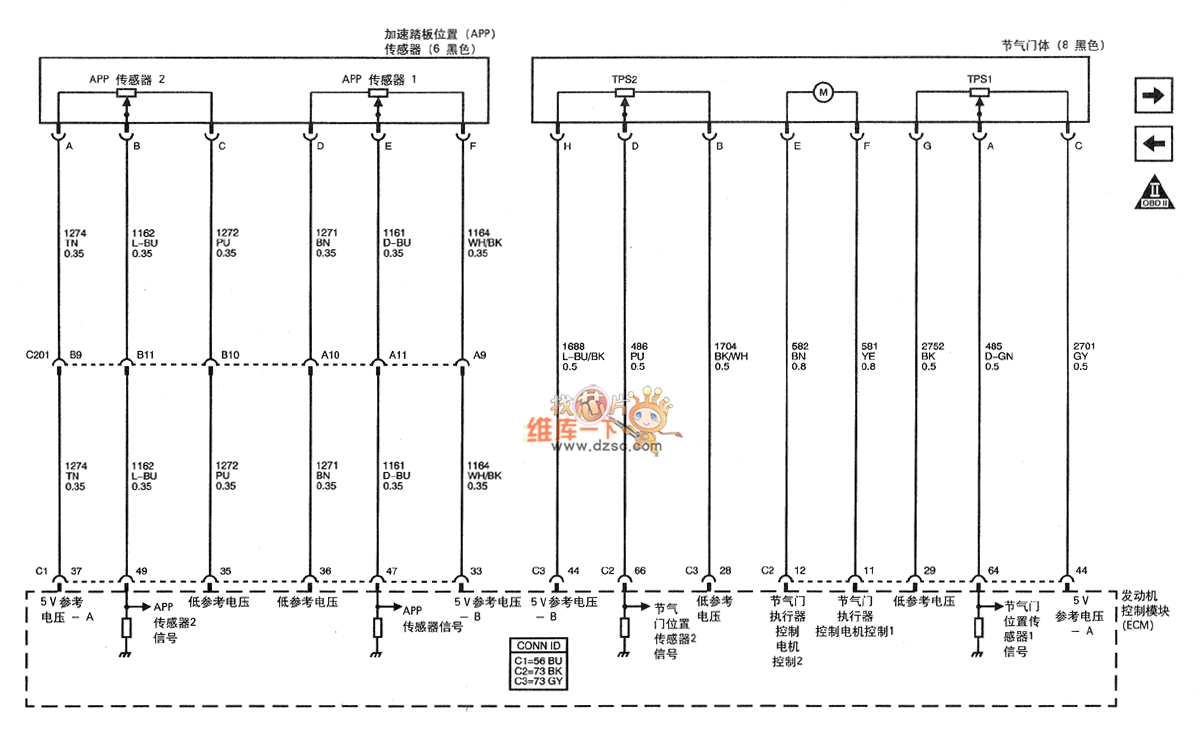

The Shanghai GM Buick LaCROSSE Car 2.4L Engine Circuit (5) is shown below.
