TA8170--the stereo decoding integrated circuit

Published:2011/6/9 22:36:00 Author:qqtang | Keyword: stereo decoding, integrated circuit | From:SeekIC

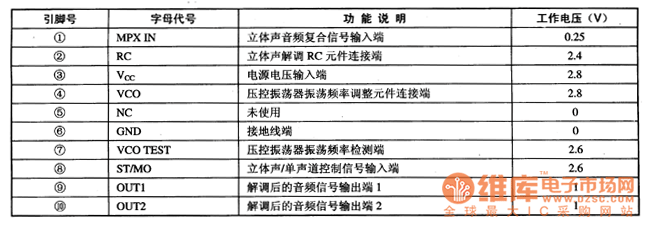

TA8170 is the stereo decoding integrated circuit produced by Toshiba, which is widely used in low-voltage radio circuit as the demodulator of modulate stereo signals, such as walkman and car stereo, etc.1.function featuresTA8170 contains the voltage control oscillator, stereo sound decoing circuit, mixing signal pre-amplifier circuit, stereo/single channel shifting control circuit and other affiliated circuits.2. Pin functions and dataTA8170 is in 10-pin single line package, whose pin functions and data are listed in table 1.
