TA8403K field scanning output IC

Published:2011/7/7 0:59:00 Author:chopper | Keyword: field scanning, output, IC | From:SeekIC

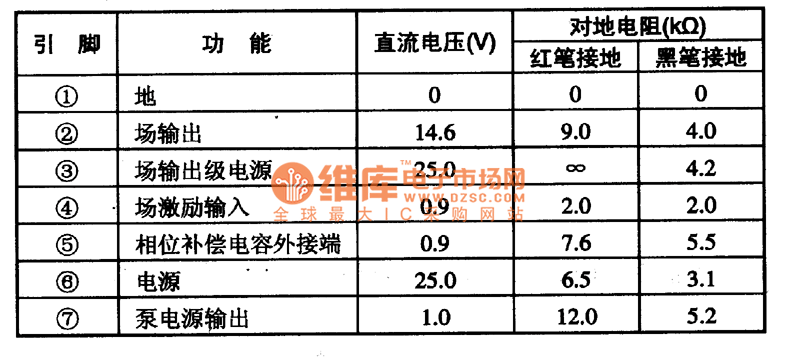

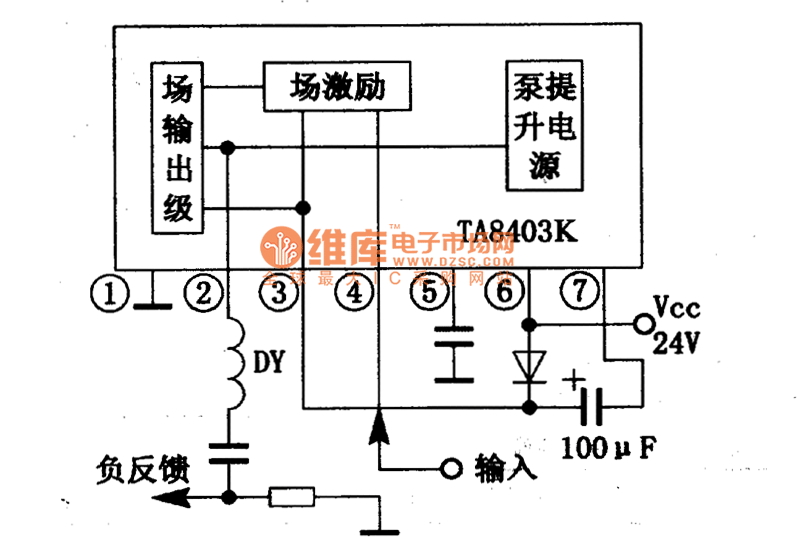

TA8403K is a field scanning output integrated circuit,and it is applied to homemade and import large-screen color TVs.1.Function characteristicsTA8403K integrated circuits contains field excitation and output circuits,field pump power circuit and so on.The maximum output current is 1.6Ap-p, maximum output power is 8W.The inner circuit and typical applicatin circuit are shown as picture 1. 2.function and data of pinsTA8403K IC adopts single inline 7 pinned package,and it is applied to Changhong KR231FB color TVs,and the function and data of pins of its IC are shown as chart 1.
