TA8445K field scanning output integrated circuit

Published:2011/5/8 5:47:00 Author:TaoXi | Keyword: field scanning, output | From:SeekIC

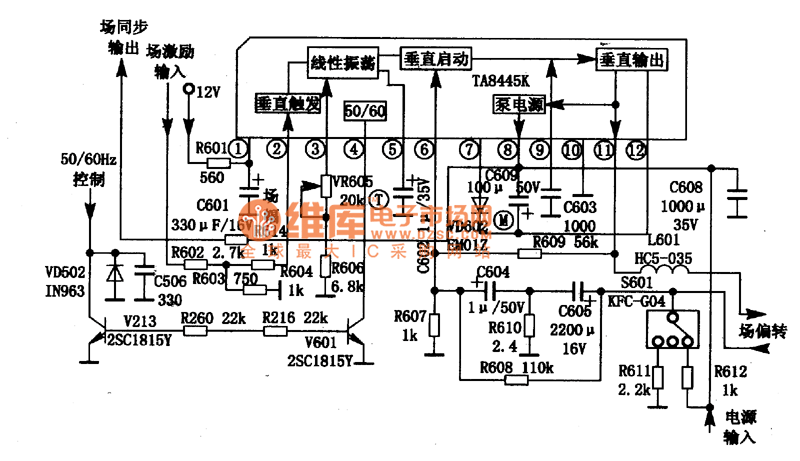

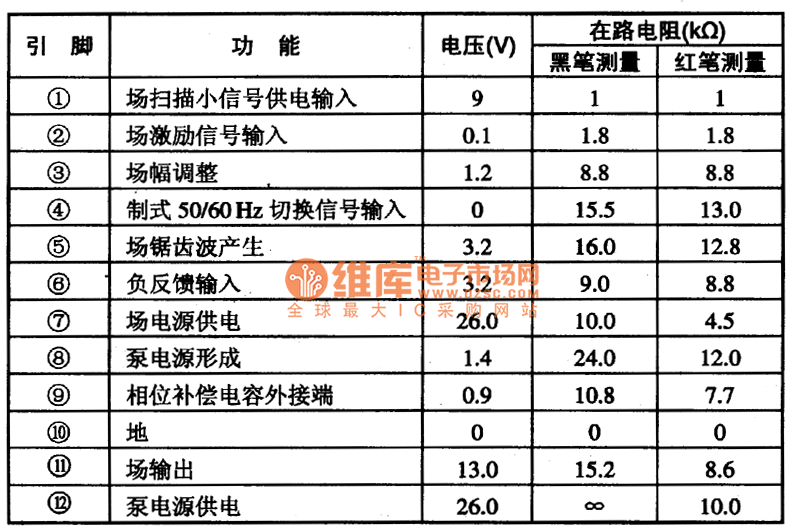

The TA8445K field scanning output integrated circuit is produced by the TOSHIBA company, and it can be used in variety kinds of domestic and imported TVs. 1.Features The TA8445K has the acoustic excitation output circuit, the pump power supply circuit, the field oscillation and sawtooth production circuit. The maximum output current is 2.2Ap-p, the maximum output power is 12.5W. The in-circuit block diagram and the typical application circuit of the TA8445K are as shown in figure 1. Figure 1 The in-circuit block diagram and the typical application circuit of the TA8445K 2.Pin functions and data The pin functions and data of the TA8445K is as shown in table 1. Table 1 The pin functions and data of the TA8445K
