TDA3653B, TDA3653C, TDA3654B--Field scanning output integrated circuit

Published:2011/5/8 6:46:00 Author:TaoXi | Keyword: Field scanning, output | From:SeekIC

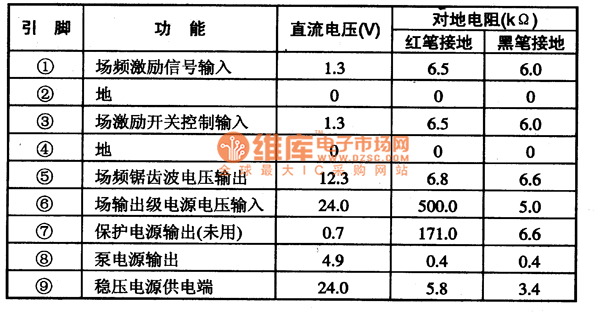

The TDA3653B, TDA3653C, TDA3654B--Field scanning output integrated circuit is produced by the PHILIPS company that can be used in domestic and imported color television sets. The TDA3653B and TDA3653C's maximum output current is 1.5Ap.P, the maximum output power is 8W; the TDA3653B's maximum output current is 2.2Ap.P, the maximum output power is 15W. They have the same pin functions. The typical application circuit of the integrated block is as shown in figure 7, and the pin functions and data is as shown in table 9. The data is from the TDA3653B in Changhong C2191 TV. Table 9 The pin functions and data of the TDA3653B/C and TDA3654B
