TDA7429S integrated block typical application circuit

Published:2011/4/28 9:31:00 Author:TaoXi | Keyword: integrated block, typical application circuit | From:SeekIC

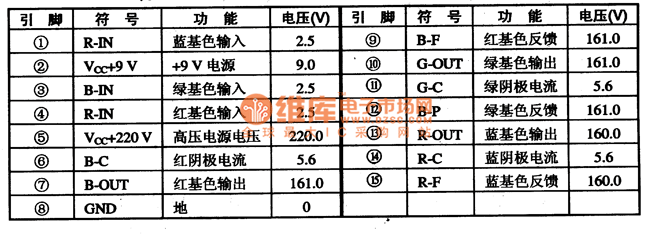

2. Pin functions and data The TDA5112 is in the 15-pin single row package, and the pin functions and data is as shown in table 24, the data is from the TCL2911DZ Yinjia large screen color TV. Table 24 The pin functions and data of the TDA5112 TDA610lQ--Video amplification circuit The TDA610lQ is one kind of video amplification circuit that is produced by the PHILIPS company, it can be used in large screen and rear projection TV, such as the Changhong 51PT28A rear projection TV.etc.
