TDA8174 integrated block typical application circuit

Published:2011/4/28 9:14:00 Author:TaoXi | Keyword: integrated block, typical application circuit | From:SeekIC

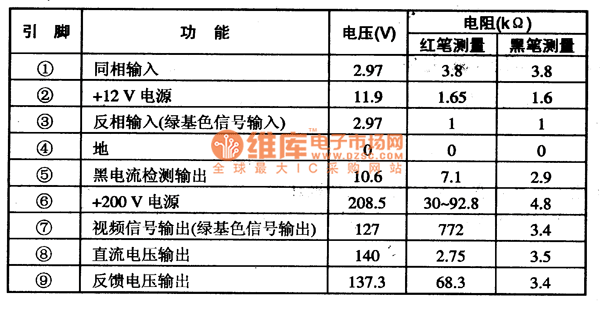

This is the measured data of the Changhong 51PT28A Rear Projection TV's ICNROl video amplification circuit, the other data of video amplification circuits ICNGO1, ICNPO01 is as shown in table 26 and 27. Table 26 Pin functions and data of the TDA610lQ(lCNGOl)
