TDA8350Q integrated block typical application circuit

Published:2011/4/28 8:15:00 Author:TaoXi | Keyword: integrated block, typical application circuit | From:SeekIC

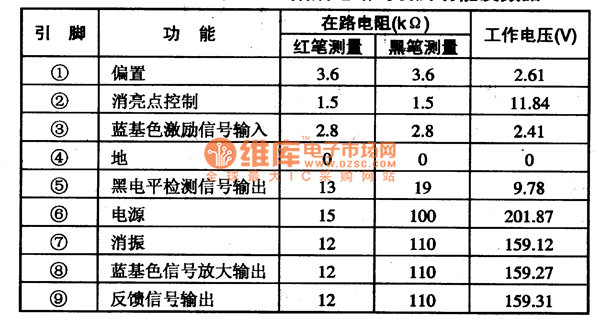

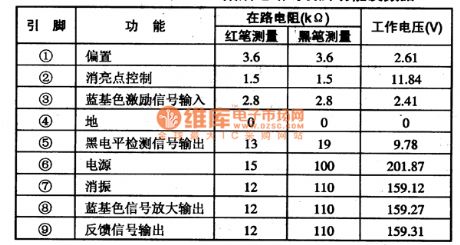

TDA6111AQ--Video signal process integrated circuit The TDA6111AQ is designed as the video signal process integrated circuit which is produced by the PHILIPS company, and it can be used in large screen, super large screen digital color TV. 1.Features The TDA6111AQ has the video signal amplify circuit, the highlights eliminate circuit and the absorber. 2.Pin functions and data The TDA6111AQ is in the single 9-pin package, the pin functions and data of the TDA6111AQ is as shown in table 31. Table 31 The pin functions and data of the TDA6111AQ TDA8350Q--Field-scann output integrated circuit The TDA8350Q is designed as one kind of field-scann output integrated circuit which is produced by the PHILIPS company, and it can be used in domestic and imported color television sets. 1.Features The TDA8350Q has the field excitation and the output circuit, the field flyback pulse generator circuit. The maximum output current is 2.2Ap-p, the maximum output power is 15W, the typical application circuit is as shown in figure 31.
