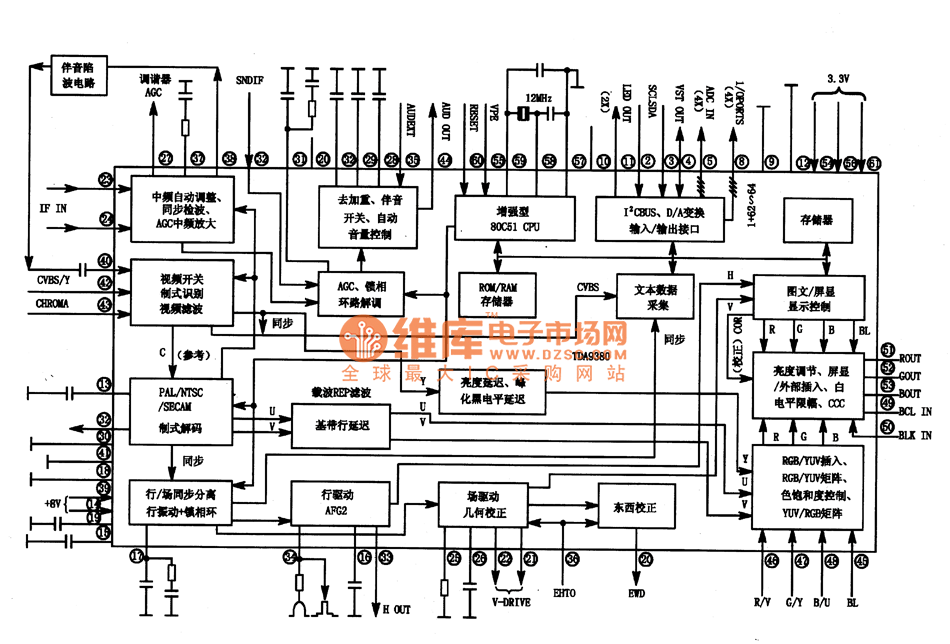

TDA9380 integrated block internal box circuit

Published:2011/4/27 5:50:00 Author:TaoXi | Keyword: integrated block, internal box | From:SeekIC

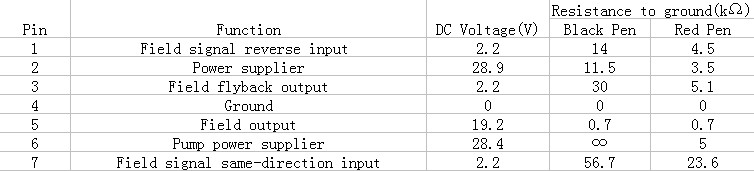

TDA8170 -- field-scanning output circuit TheTDA8170 is designed as one kind of new field scanning output integrated circuit which is produced by the Philips company, and this device can be used in some kinds of large screen color TV. 1.Features The TDA8170 is composed of the field pre-amplifier circuit, the field output power amplifier, the field back-pulse generator circuit, the field-scanning pump power supply circuit and other circuits. 2.Pin functions and data The TDA8170 is in the 7 pins single in-line plastic package, the pin functions and data is as shown in table 44, and the measured data is from the Sony KV-3400DY2 color TV. Table 44 Pin functions and data of the TDA8170
