TDA9860 integrated block internal box circuit

Published:2011/4/27 5:41:00 Author:TaoXi | Keyword: integrated block, internal box circuit | From:SeekIC

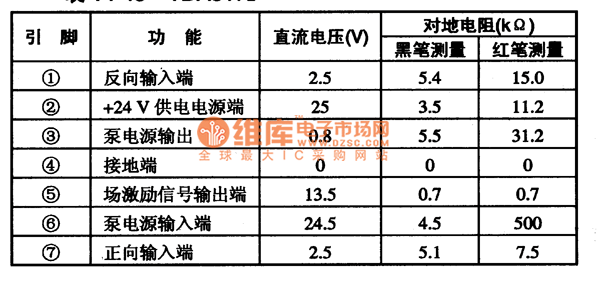

2. Pin functions and data The pin functions and data circuit of the DTA8172 is as shown in table 45. The DTA8172 is in the 7-pin single in-line package. Table 45 The pin functions and data circuit of the DTA8172
