The comparative capacitance detector composed of CD4046

Published:2011/9/9 18:32:00 Author:Ariel Wang | Keyword: comparative, capacitance detector | From:SeekIC

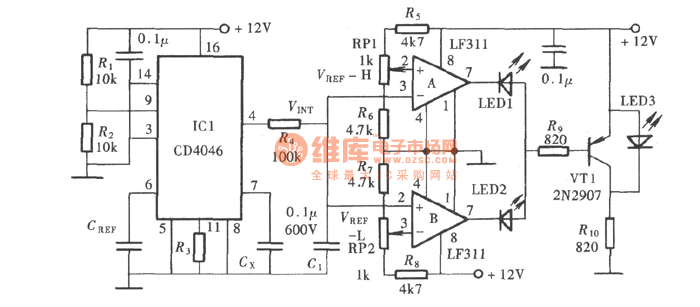

The comparative capacitance detector is used to compare the capacitance to be detected and the standard capacitance.When the capacitance to be detected is larger or smaller than the standard capacitance,it can bedetected quicklywhether the capacitance of some products is comform to the design standard.In this way it can ensure the product quality as demanded.Other circuit composition is seen as the chart.
