The effective ozone generator

Published:2011/8/24 0:43:00 Author:Ariel Wang | Keyword: effective, ozone generator | From:SeekIC

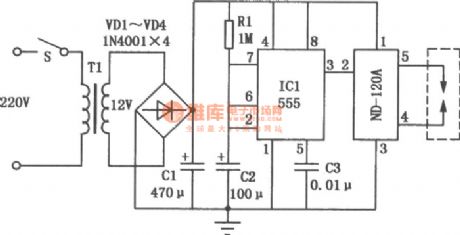

The ozone is a strong oxidizer.It has the ability to sterilize,bleach,deodorize and oxygenate.The specific circuit of the effective ozone generator is shown as the chart.The power transformer outputs +12V voltage time-base provides power supply to the integrated circuit 555 and ozone generater component ND-120A after it is commutated.IC1,R1 and C2 made up the monostable oscillator.You can adjust the value of R1 and C2 to change the oscillation frequency of IC1.The pin③ outputs oscillation impulse after IC1 oscillates.It stimulates ozone components.Then the pin④ and pin⑤ drive the ozone chips directly.The circuit can generate 100～150mg ozone every hour.It could be used in the place with low ozone density.
