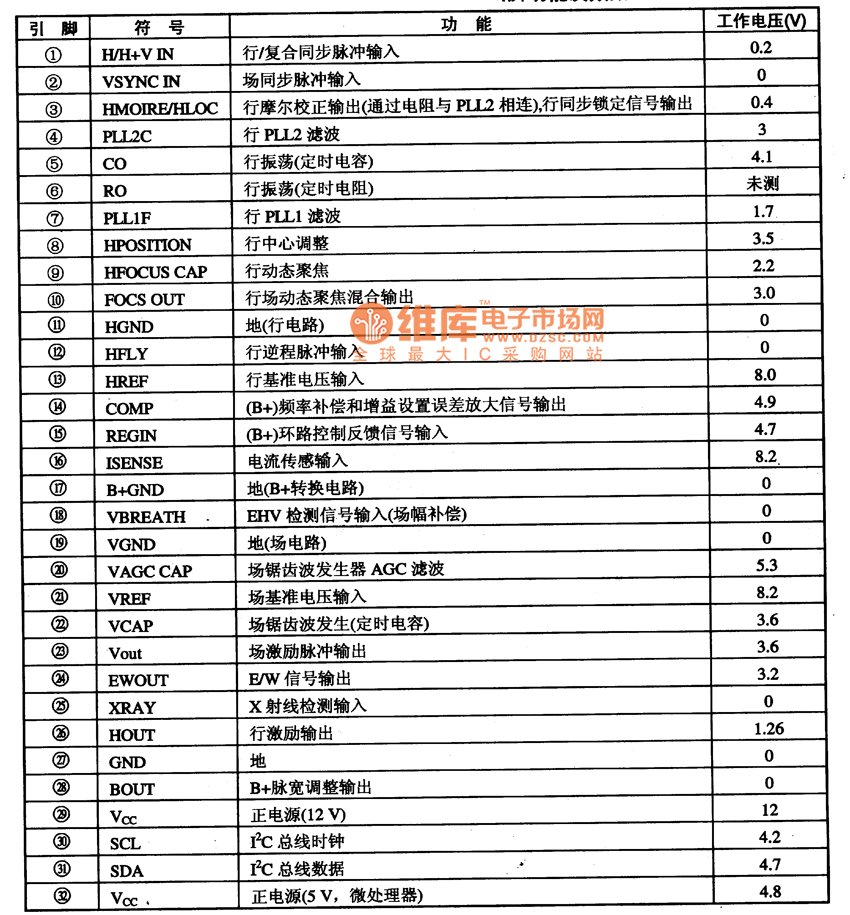

The function and data of pins of TDA9111 IC

Published:2011/7/6 23:54:00 Author:chopper | Keyword: function, data, pins, IC | From:SeekIC

TDA9111 —— l(2)C bus control line-field scanning integrated circuitTDA9111 is a IzC bus control line-field scanning integrated circuit produced by Company Phillips,and it is applied to 75Hz progressive scanning PJTV.1.Function characteristics 　　TDA9111 integrated circuit contains the the microprocessor of I(2)C bus control interface,as well as the unit circuits like line-field synchronization, line-field oscillation, B+ field correction Moore processing,dynamic focus form, line dual phase-locked loop, X-ray protection, raster geometry distortion and so on.
