The photoelectric control circuit diagram of the photocoupler

Published:2011/3/27 20:08:00 Author:Ecco | Keyword: photoelectric control, optoelectronics coupler | From:SeekIC

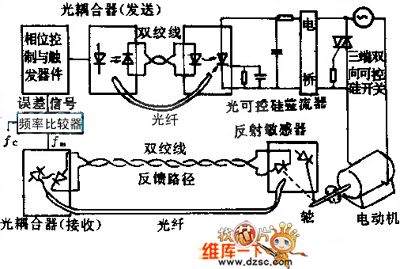

Using photocoupler, the circuit diagram is a type of circuit which makes a photoelectric control of the velocity of working dynamo. Because this kind of circuitry separates the dynamo control machinery parts in network and avoides ground return, and the logic circuitry is protected from the high pressure from burden in a sudden state impact.
