The pin functions and data circuit of TDA81795

Published:2011/4/27 4:15:00 Author:TaoXi | Keyword: pin functions, data circuit | From:SeekIC

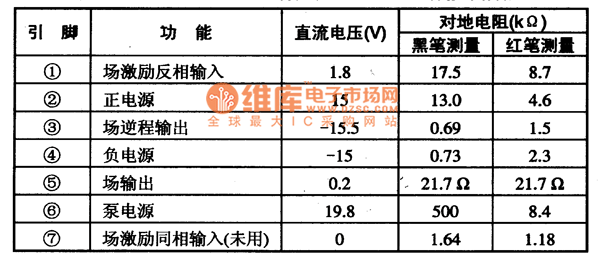

TDA8179S -- field-scanning roll-out carry-on circuit The TDA8179S is designed as one kind of new field scanning output integrated circuit which is produced by the Philips company, and this device can be used in domestic and imported brands of large screen color TV. 1.Features The TDA8179S is composed of the field-excitation signal-amplification circuit, the field output power amplifier, the field back-pulse generator circuit, the field-scanning pump power supply circuit and other circuits. 2.Pin functions and data The TDA8179S is in the 7 pins single in-line plastic package, the pin functions and data is as shown in table 51, and the measured data is displayed in Sony KV-S34MHl large screen color TV. Table 51 Pin functions and data of the TDA8179S
