The power supply and starter circuit of Daewoo Racer

Published:2011/5/22 0:14:00 Author:Borg | Keyword: power supply, Daewoo Racer | From:SeekIC

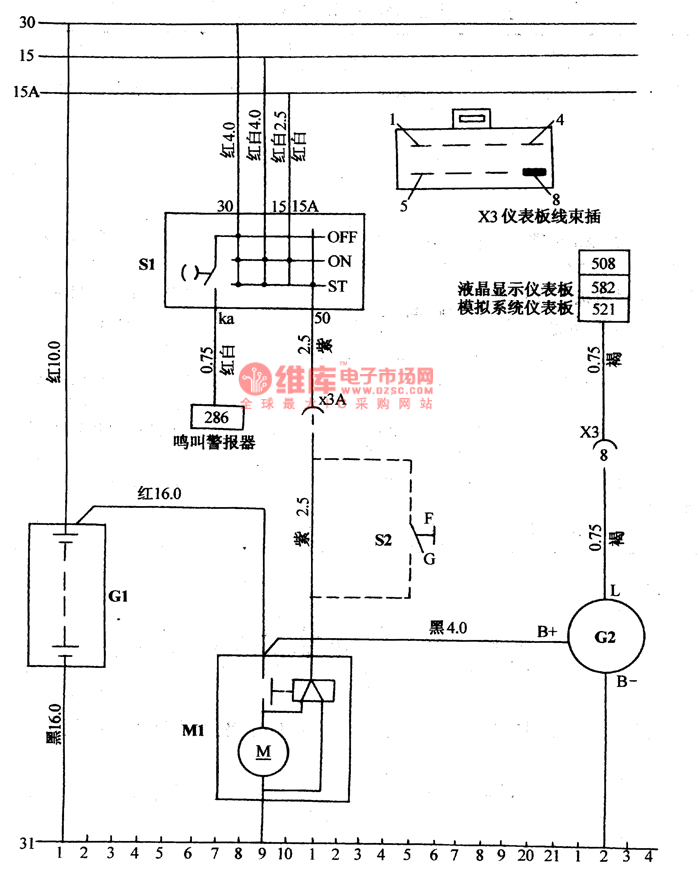

Figure 1c The power supply and staring circuit of Daewoo RacerG1-battery; G2-AC generator; M1-starter; S1-igniting switch; S2-neutral gear switch; F1(10A):the ECM terminals(B1,C16) of generator e-controller; F2(10A):the width lamp and instrument lamp linked by No.58 circuit; F3(10A):the head high beam(left); F4(10A):the head high beam(right). High beam indicator.F5(10A):the head low beam(left); F6(10A):the head low beam(right); F14(30A):the fan relay of radiator(high speed and low speed).
