The responsiveness tester composed of CD4017

Published:2011/9/9 19:50:00 Author:Ariel Wang | Keyword: responsiveness tester | From:SeekIC

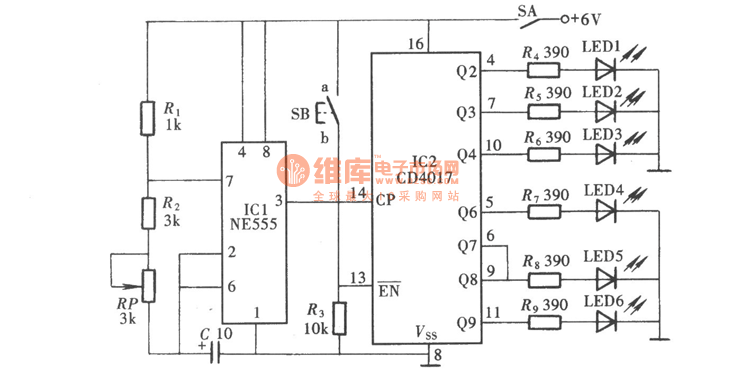

The responsiveness tester used to test response capabilities and training of human rapid-response capability.It has a variety of structural forms.As shown in the chart the responsiveness tester uses the decimal counterCD4017 and light-emitting diodes.The structure is relatively simple, it can be used as a toy to train and test the children's rapid response capability.
