Toy car remote control circuit diagram

Published:2011/4/18 5:04:00 Author:Rebekka | Keyword: Toy car remote control | From:SeekIC

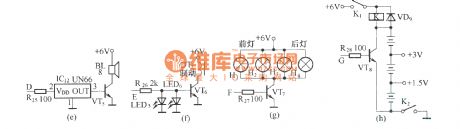

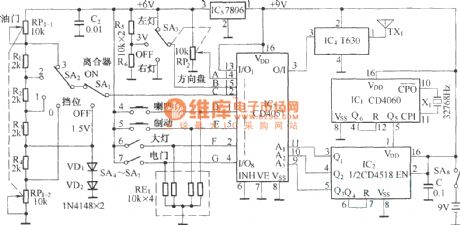

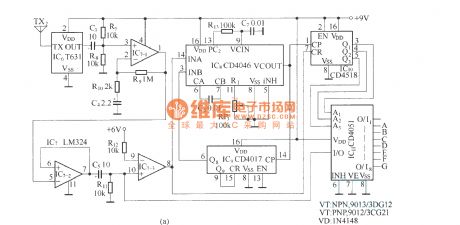

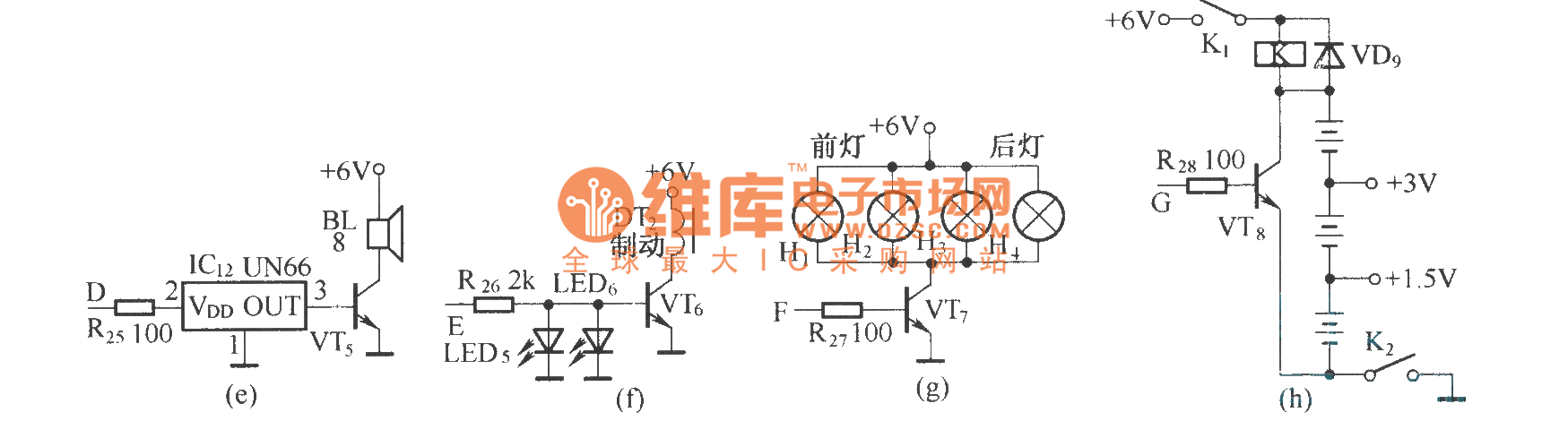

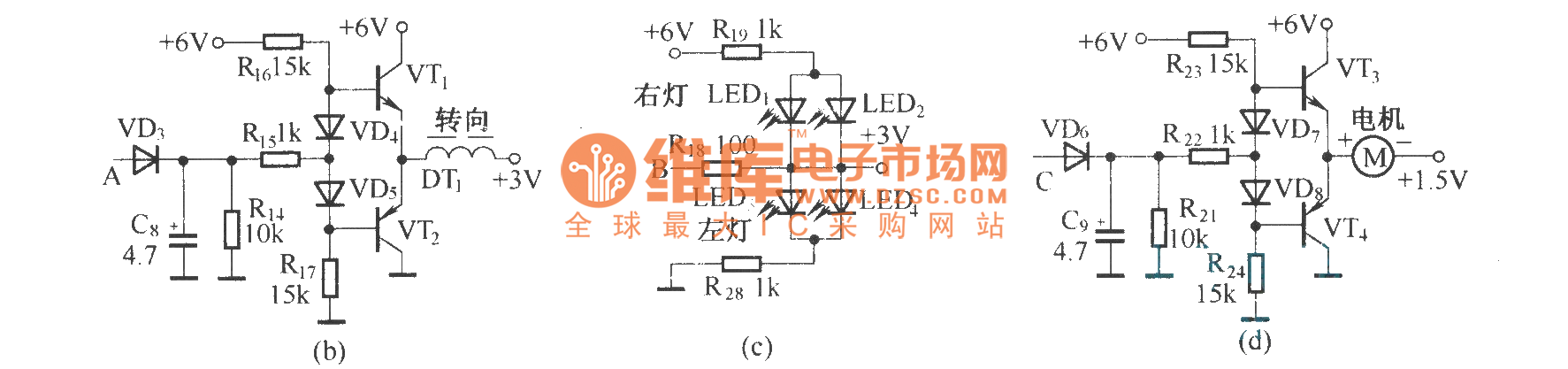

Toy car remote control transmitter circuit. Toy car remote control receiver circuit. (a) is receive circuit. It contains seven output ABCDEFG. They Control the steering respectively(b); Left and right turn signal(Figure c); Drive motor (Figure d); Musical sound circuit(Figure e); Brake solenoid and driver rear brake light LED5LED6 lights; Before and after the headlight switch (Fig. g); power supply (Figure h).
