Wireless remote control ceiling fan circuit diagram

Published:2011/4/18 4:52:00 Author:Rebekka | Keyword: Wireless remote control, ceiling fan | From:SeekIC

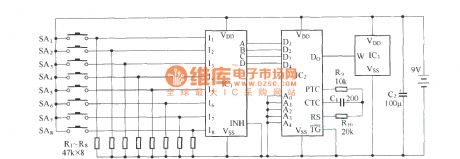

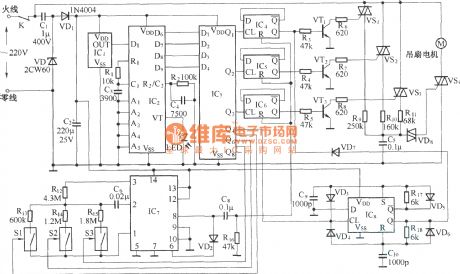

Ceiling fan wireless remote control transmitter circuit. Ceiling fan wireless remote control receiver circuit. In transmitter circuit:IC1 is line 10-line 4 priority encoder CD40147;IC2 is the digital encoder MC145026;IC3 is the long-wave emission component T630.In receiver circuit:IC1 is a long-wave receiver module T631;IC2 is a digital decoder MC145027;IC3 is a 4-16 line decoder CD4514.
