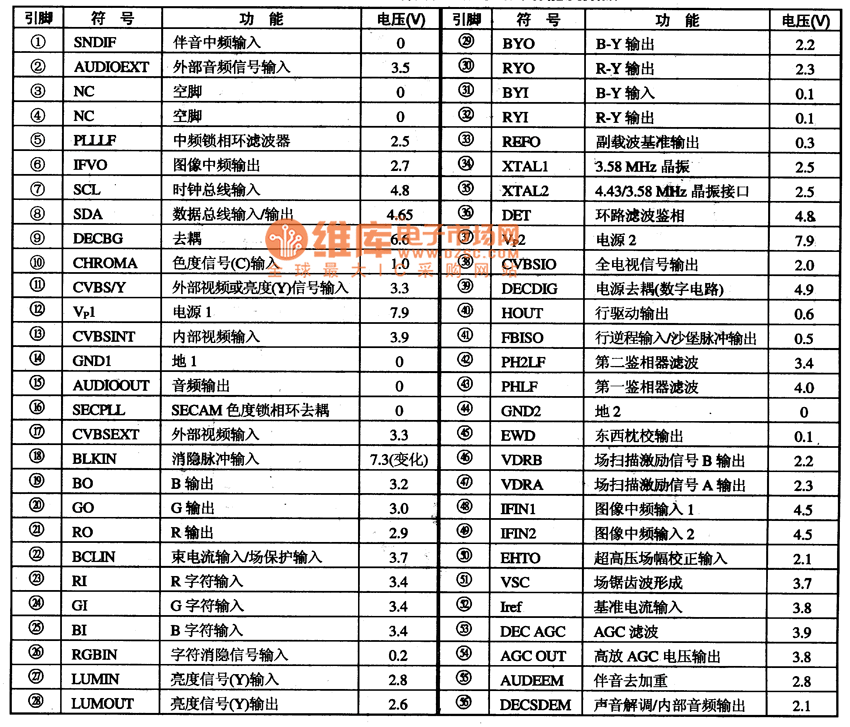

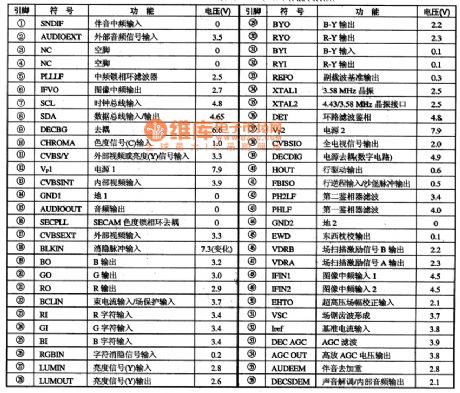

the funciton and data of pins of TDA8841 IC

Published:2011/7/7 0:10:00 Author:chopper | Keyword: funciton, data, pins, IC | From:SeekIC

TDA8841--TV small signal processing monolithic integrated circuitTDA8841 is a TV small signal processing monolithic integrated circuit produced by Company Phillips,and it is applied to various homemade and import color TV,such as TCL Yinjia series.1.Function characteristics TDA8841 IC contains the image and audio signal processing circuit,line and field scanning small signal processing circuit,chroma and luminance signal processing circuit,I(2)C bus interface circuit,character-display signal processing circuit,external video or luminance (Y) input signal processing circuit, and other auxiliary functions circuits.
