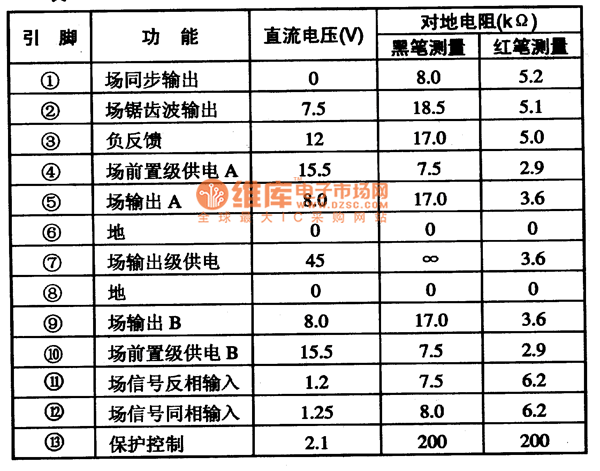

the function and data of pins of TDA8354Q IC

Published:2011/7/7 0:46:00 Author:chopper | Keyword: function, data, pins, IC | From:SeekIC

TDA8354Q--field scanning output integrated circuitTDA8354Q is a new field scanning output integrated circuit produced by Company Phillip,and it is applied to homemade and import large-screen color TVs.1.Function characteristicsTDA8354Q integrated circuits contains field sawtooth wave signal generating circuit,field prestage signal amplifier circuit,field output power amplifier circuit,field synchronous signal processing circuit, field prestage powering circuit, and other auxiliary function circuits.
